Garage Door Opener

WARNING: This page is about a different car, the 2015 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

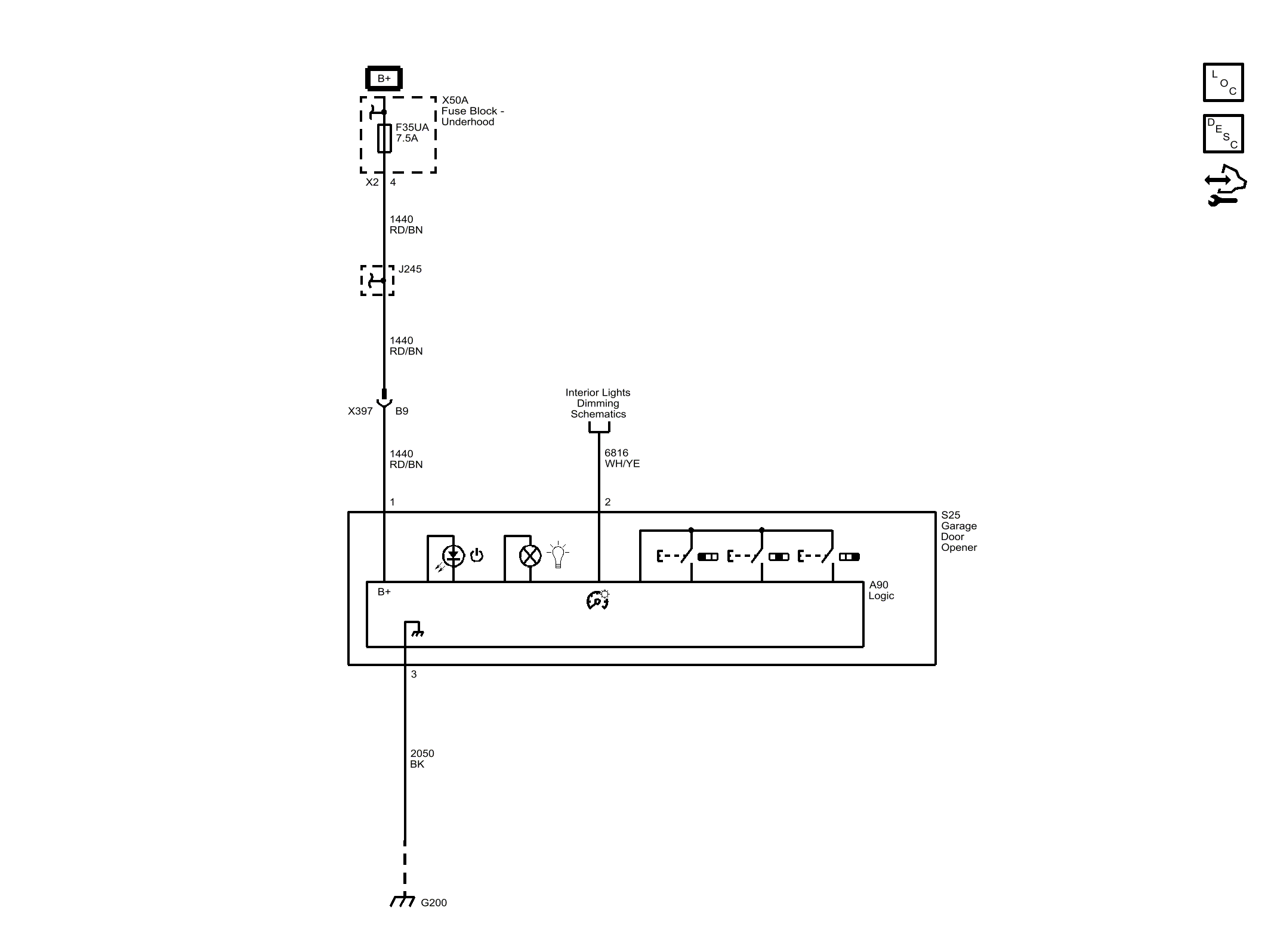

Fig 1: Garage Door Opener
GM3802188Courtesy of GENERAL MOTORS COMPANY
