Q38 Throttle Body (LFR/LFX)
WARNING: This page is about a different car, the 2016 Chevrolet Impala Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|

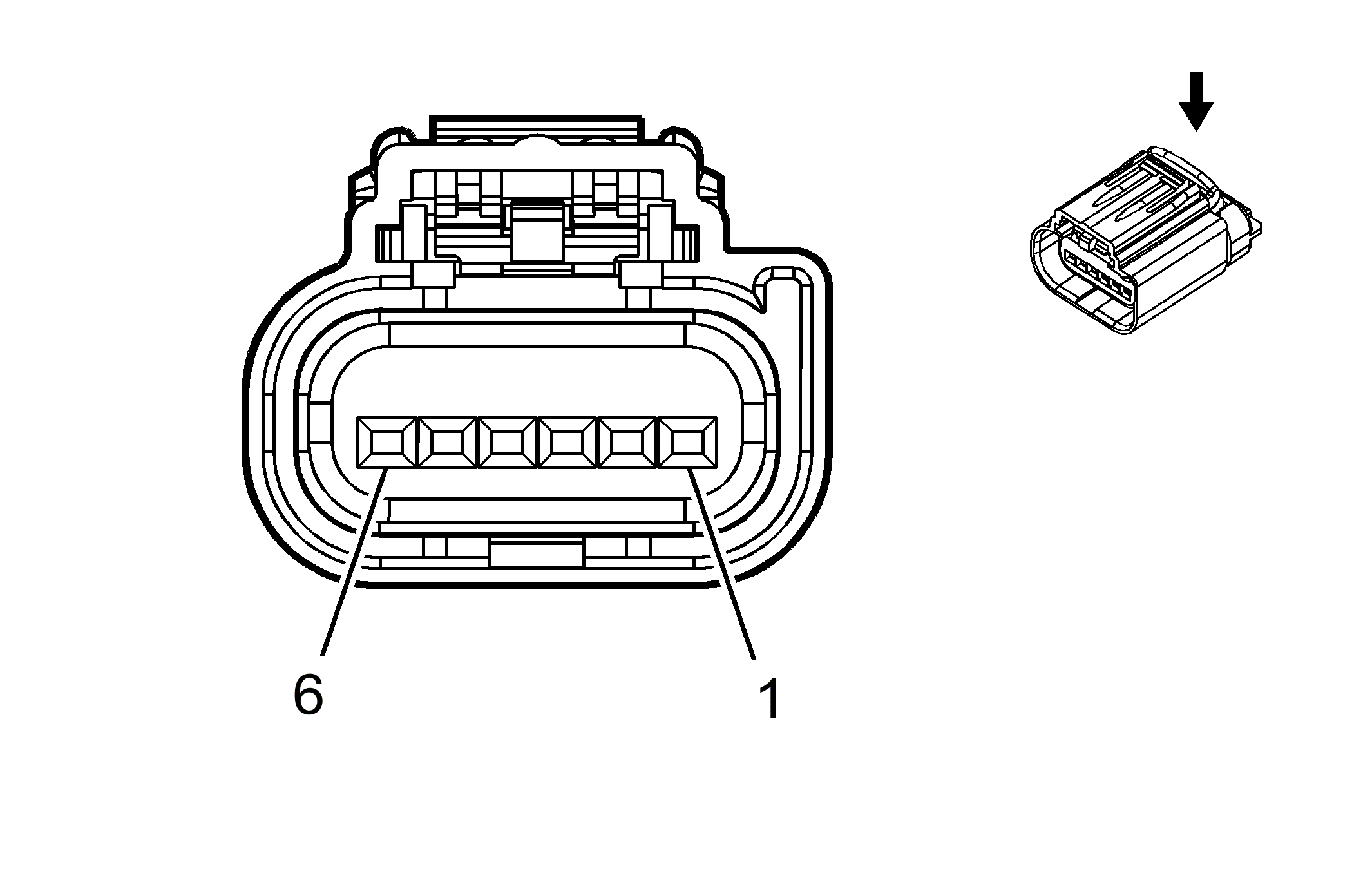

Connector Part Information
- Harness Type: Engine
- OEM Connector: 1-1419168-1
- Service Connector: 13580980
- Description: 6-Way F 0.64 GET Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE |
581 |
Throttle Actuator Control Open |
I |
- |
| 2 |
0.5 |
BN |
582 |
Throttle Actuator Control Close |
I |
- |
| 3 |
0.5 |
D-GN |
485 |
Throttle Position Sensor Signal (1) |
I |
- |
| 4 |
0.5 |
TN |
2752 |
Throttle Position Sensor Low Reference |
I |
- |
| 5 |
0.5 |
GY |
2701 |
Throttle Position Sensor 5 Volt Reference |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
