Installation Procedure

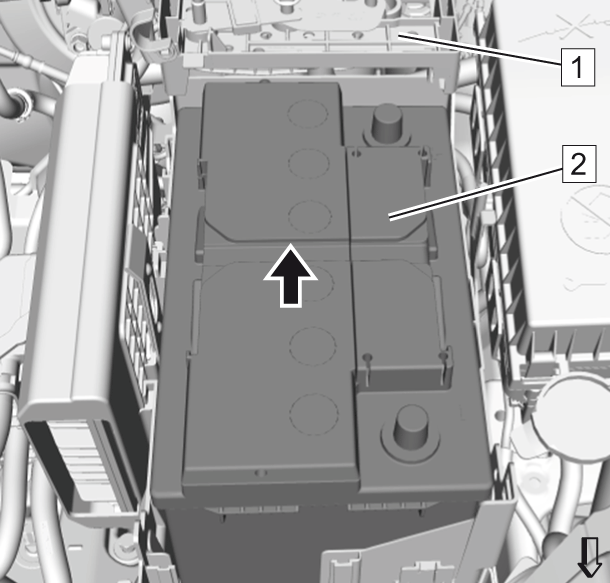

    Fig 1: Battery And Back Fuse Box
    GM4422291Courtesy of GENERAL MOTORS COMPANY
  1. Install battery (2) and move rearward, in direction of the arrow until it rests against the battery tray. Hold back the fuse box (1).

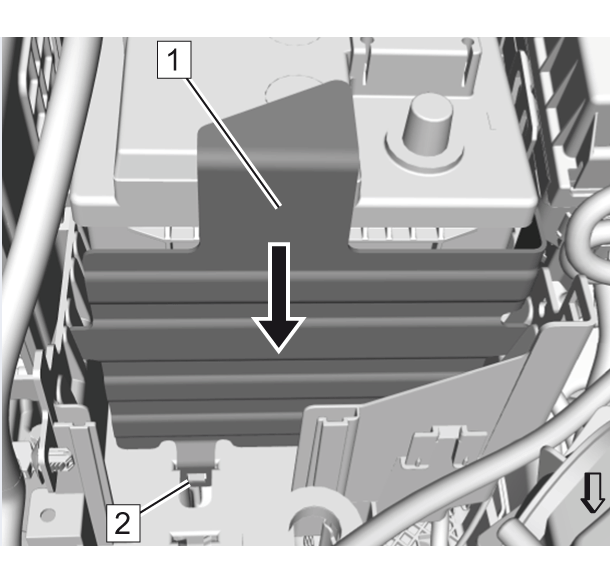

    2. Fig 2: Battery Tray Protector And Retainer
    GM4422290Courtesy of GENERAL MOTORS COMPANY
  2. Install the battery tray protector (1) to battery tray and move forward, in the direction of the arrow until the retainer (2) engages with the battery tray.

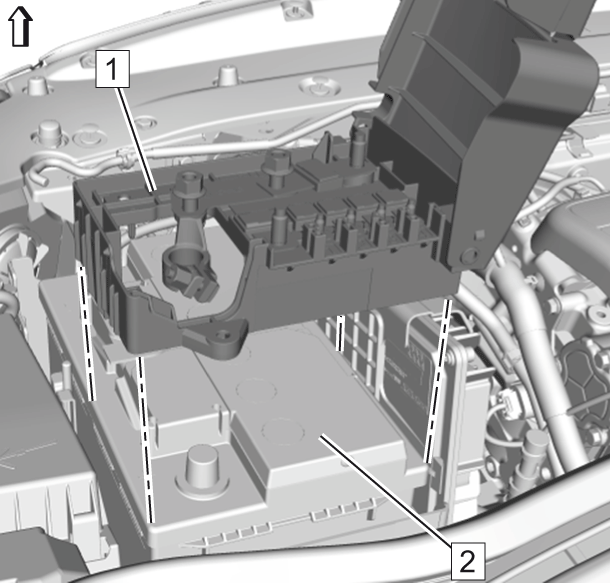

    3. Fig 3: Rear Side Of Battery Fuse Box
    GM4422289Courtesy of GENERAL MOTORS COMPANY
  3. Align the rear side of the battery fuse box (1) exactly to the rear side of the battery (2).

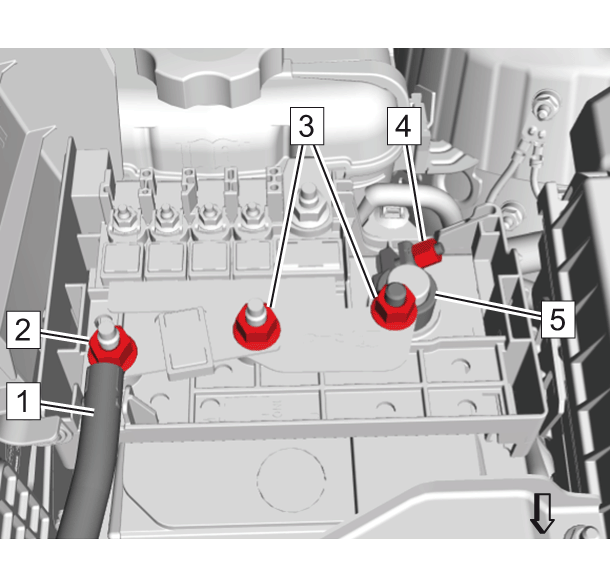

    4. Fig 4: Battery Positive Cable And Starter Cable
    GM4422284Courtesy of GENERAL MOTORS COMPANY
  4. Install the battery positive cable (5) to the battery.
    5. CAUTION:

    Refer to Fastener Caution .

  5. Tighten the battery positive cable nut (4) to 4.5 (40 lb in).
  6. Tighten the 2 battery positive plate nuts (3) to 12 (106 lb in).
  7. Install the battery positive cable to starter cable (1).
  8. Install the battery positive cable to starter cable nut (2) and tighten to 12 (106 lb in).

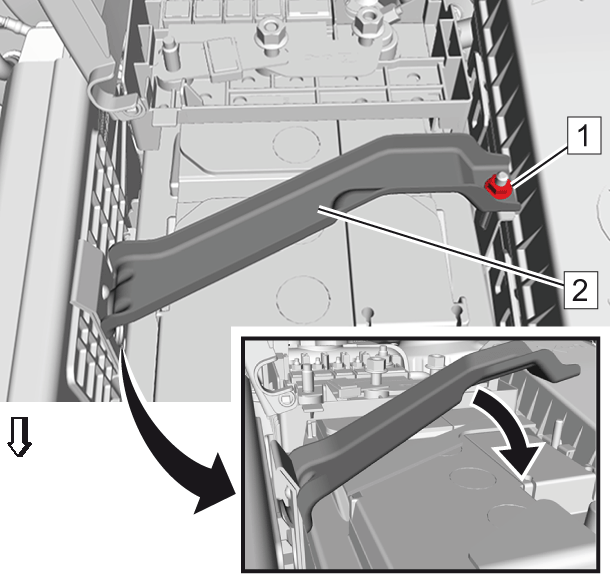

    9. Fig 5: Battery Hold Down Retainer
    GM4422292Courtesy of GENERAL MOTORS COMPANY
  9. Install the battery hold down retainer (2).
  10. Install the battery hold down retainer nut (1) and tighten to 9 (80 lb in).

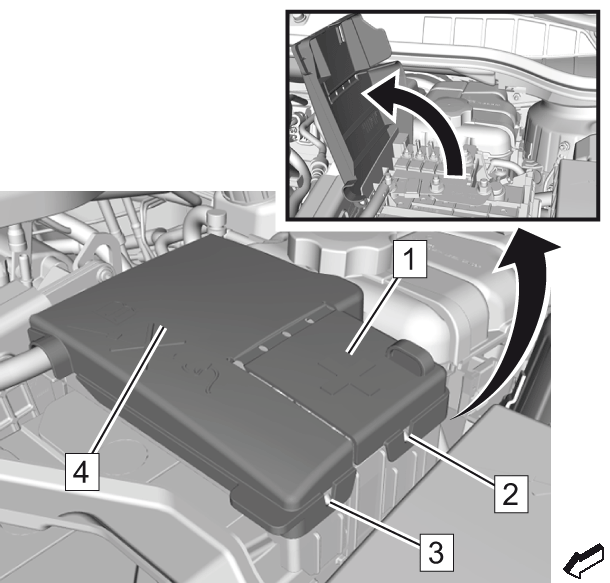

    11. Fig 6: Retaining Tab And Battery Fuse Box Flap
    GM4422283Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Pull the battery fuse box housing, not the flap.

  11. Close the battery fuse box covers (1, 4) and lock the retaining tabs (2, 3).
  12. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
