Steering Wheel Replacement

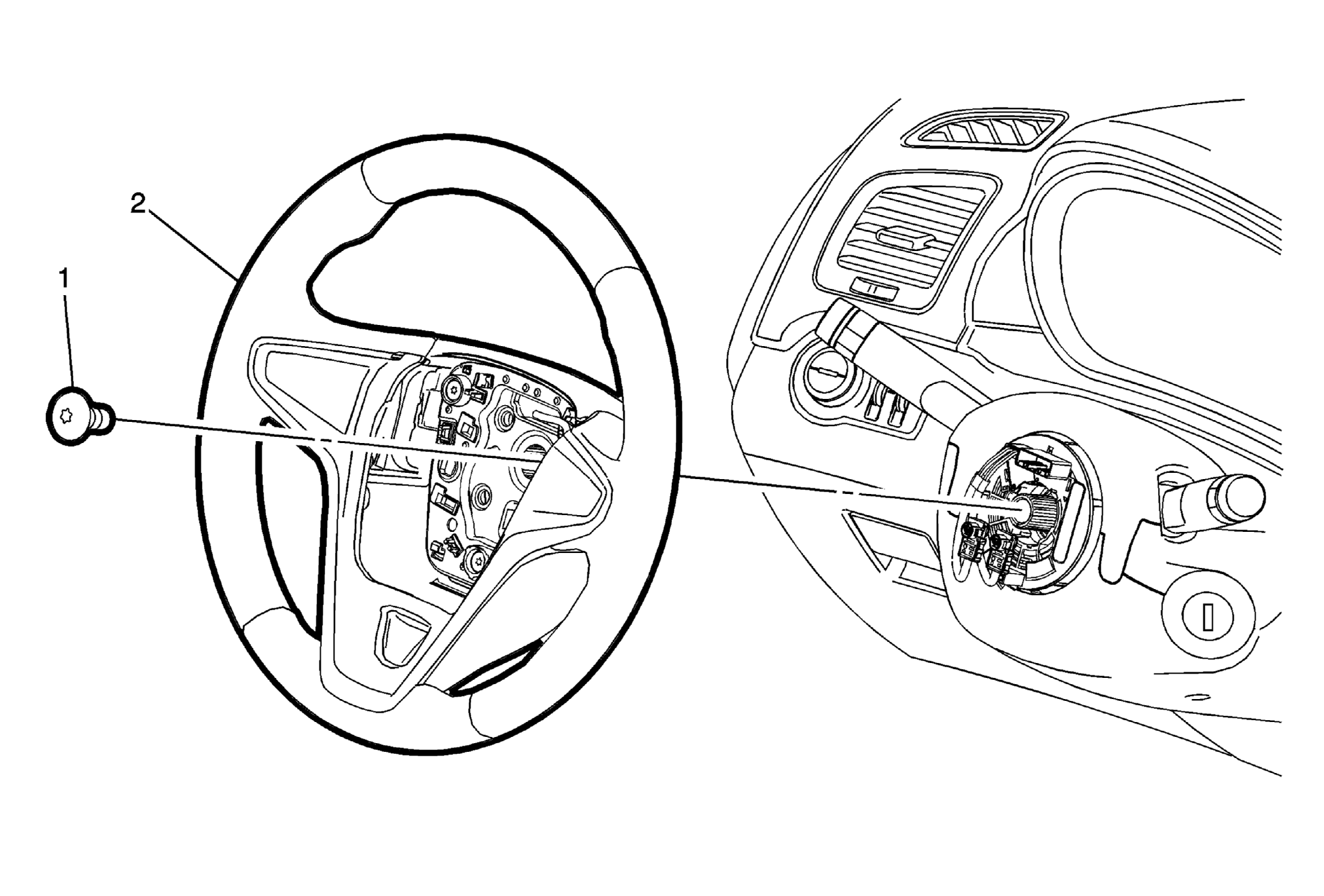

Fig 1: Steering Wheel
GM3420207Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

When performing service on or near the SIR components or the SIR wiring, the SIR system must be disabled. Refer to SIR Disabling and Enabling. Failure to observe the correct procedure could cause deployment of the SIR components, personal injury, or unnecessary SIR system repairs.

Preliminary Procedure Airbag Steering Wheel Module Replacement
1 Steering Wheel Bolt
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Clean the threads of the bolt with denatured alcohol or equivalent and allow to dry.
  2. Apply thread locking adhesive to the bolt. Adhesives, Fluids, Lubricants, and Sealers

Tighten
45 N.m (33 lb ft)
2 Steering Wheel

Procedure

  1. Disconnect the electrical connectors.
  2. Install the steering wheel bolt until 2 to 3 threads are engaged.
  3. Wiggle the steering wheel until the wheel disengages completely.
  4. Remove Steering Wheel Bolt
  5. Remove Steering Wheel
  6. Transfer components as necessary.
