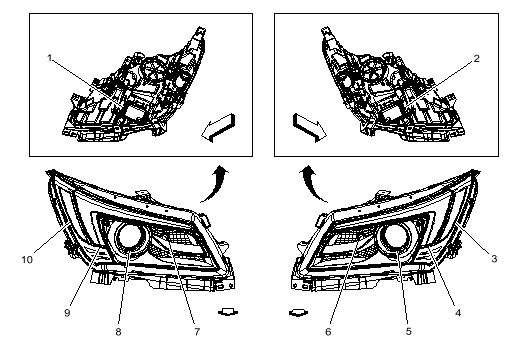

Headlamp Assembly Components (T4F without CZ2)
Headlamp Assembly Components (T4F without CZ2)
| Items |
|---|
| 1: T7R Headlamp Ballast - Right (T4F) T7R Headlamp - Ballast Right (T4F) |
| 2: T7L Headlamp Ballast - Left (T4F) T7L Headlamp - Ballast Left (T4F) |
| 3: E2LF Side Marker Lamp - Left Front (Without CZ2) |
| 4: E4AC Park/Daytime Running Lamp - Left (T4F) |
| 5: E4H Headlamp - Right Low Beam (T4A) |
| 6: E4LF Turn Signal Lamp - Left Front (T4A) |
| 7: E4RF Turn Signal Lamp - Right Front (T4A) |
| 8: E4G Headlamp - Left Low Beam (T4A) |
| 9: E4AD Park/Daytime Running Lamp - Right (T4F) |
| 10: E2RF Side Marker Lamp - Right Front (Without CZ2) |
