Auxiliary Radio/HVAC Controls (ULG)

WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

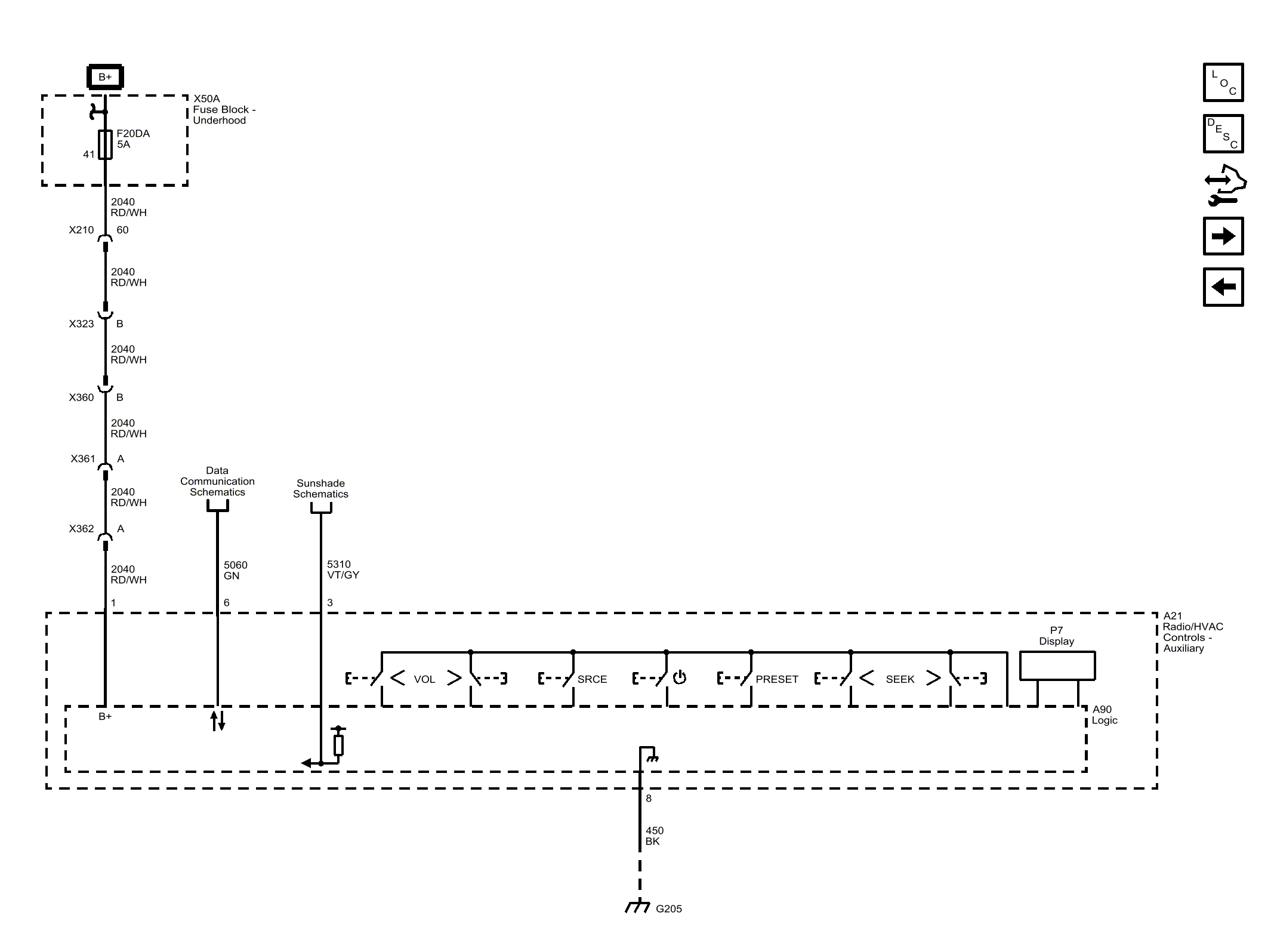

Fig 1: Auxiliary Radio/HVAC Controls (ULG)
GM3774041Courtesy of GENERAL MOTORS COMPANY
