Steering Wheel Heat Control Module Replacement

WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

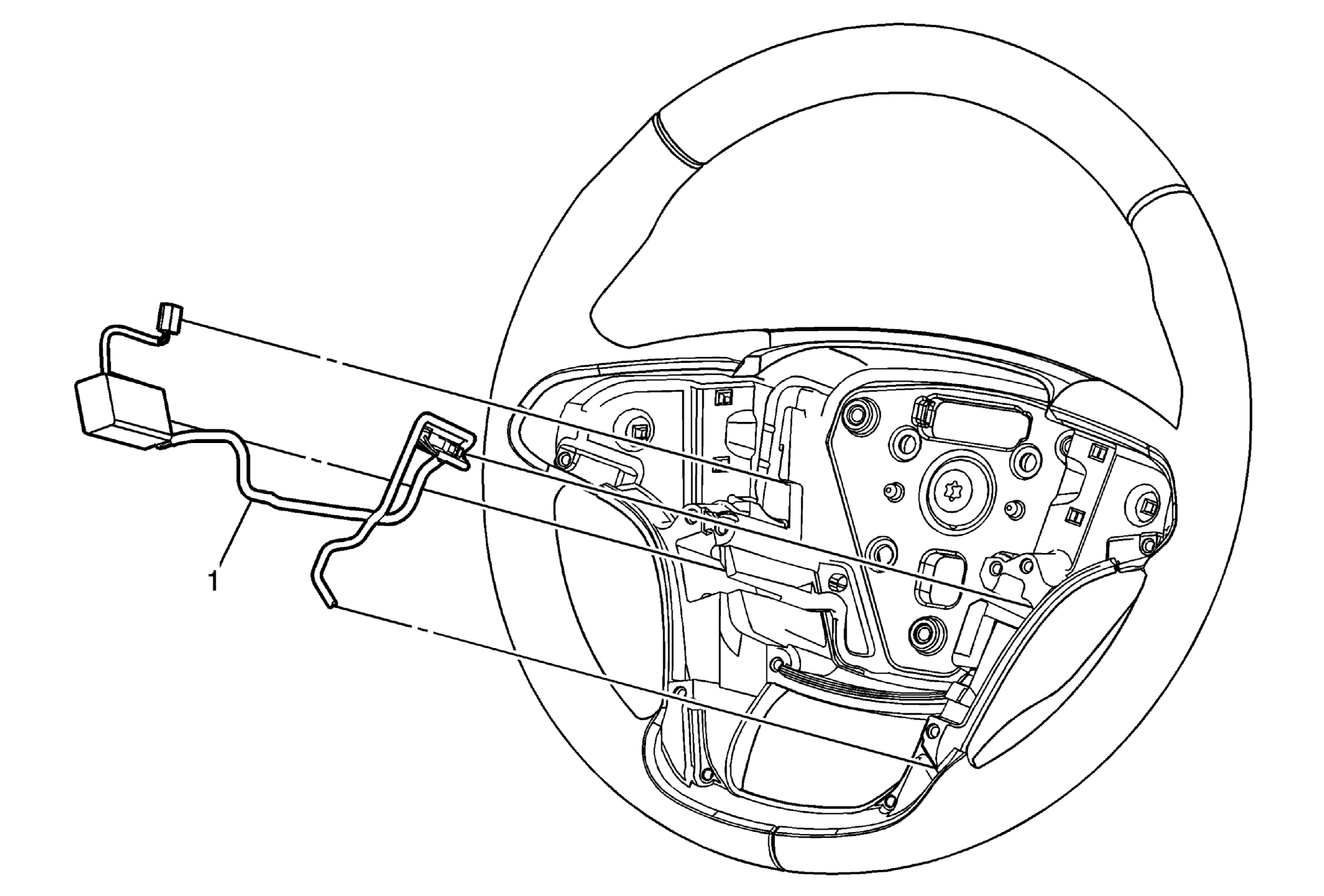

Fig 1: Steering Wheel Heat Control Module
GM2235908Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the steering wheel lower cover. Refer to Steering Wheel Spoke Lower Cover Replacement .
1 Steering Wheel Heat Control Module
Procedure
Disconnect the electrical connectors.
