Radiator Lower Mount Replacement

WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

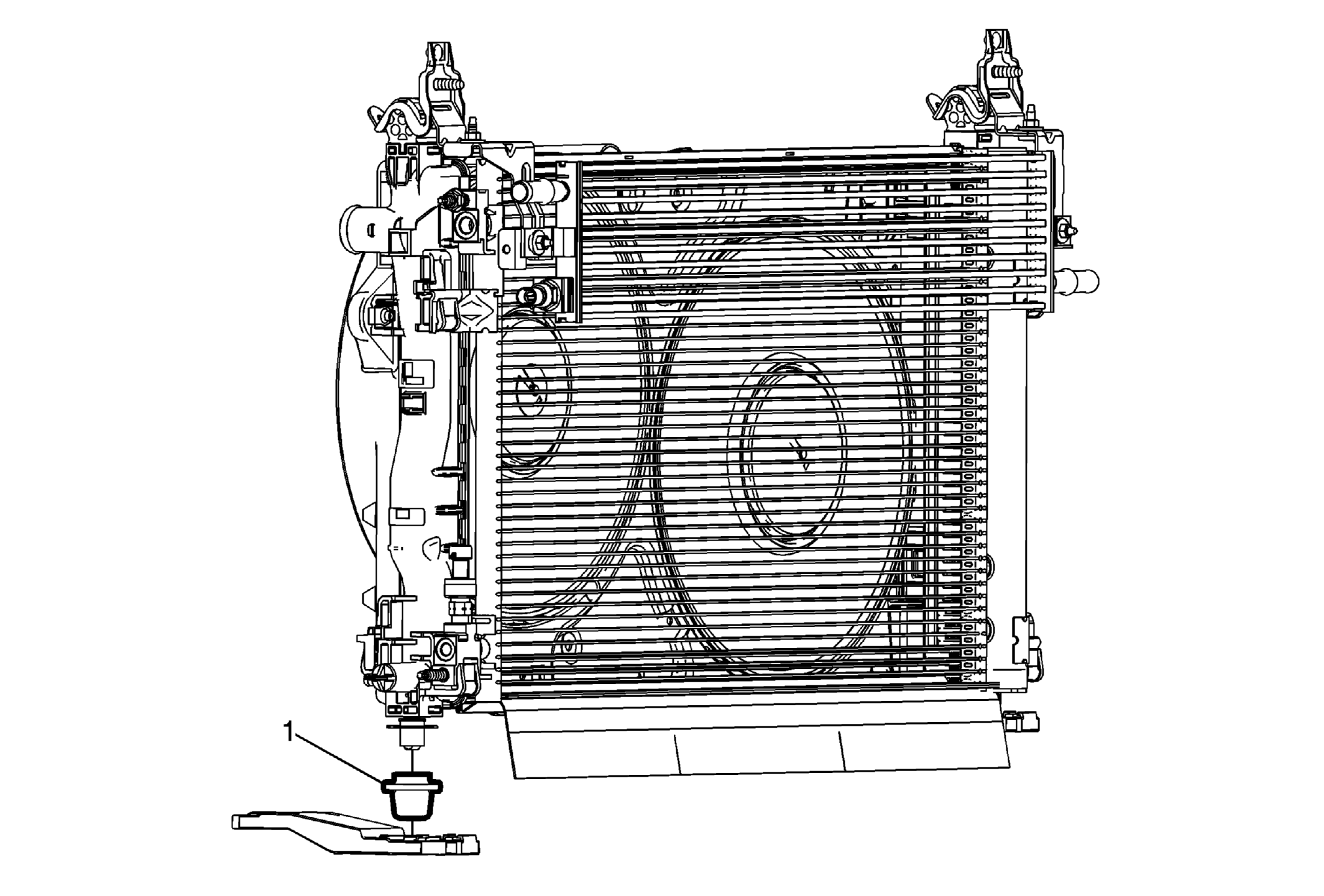

Fig 1: Radiator Lower Mount

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Lower Radiator Support Bracket. Refer to Radiator Support Bracket Replacement . Support the radiator.
1	Lower Radiator Mount

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Lower Radiator Support Bracket. Refer to Radiator Support Bracket Replacement .
Support the radiator.

Lower Radiator Mount
