Installation Procedure
WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the brake caliper guide pins and guide pin seals for damage and replace, if necessary.
- Remove any grease or debris from the brake caliper guide pins, guide pin seals, and guide pin bores in the brake caliper bracket with a clean shop cloth.
- Apply a light coating of high temperature, silicone brake lubricant to the brake caliper bracket guide pin bores, the inner portion of the guide pin seals, and the brake caliper guide pins.
- Install the lower brake caliper guide pin (1).
- Seat the brake caliper guide pin seal in the groove of the brake caliper guide pin.
- Install the upper brake caliper guide pin (2).
- Seat the brake caliper guide pin seal in the groove of the brake caliper guide pin.

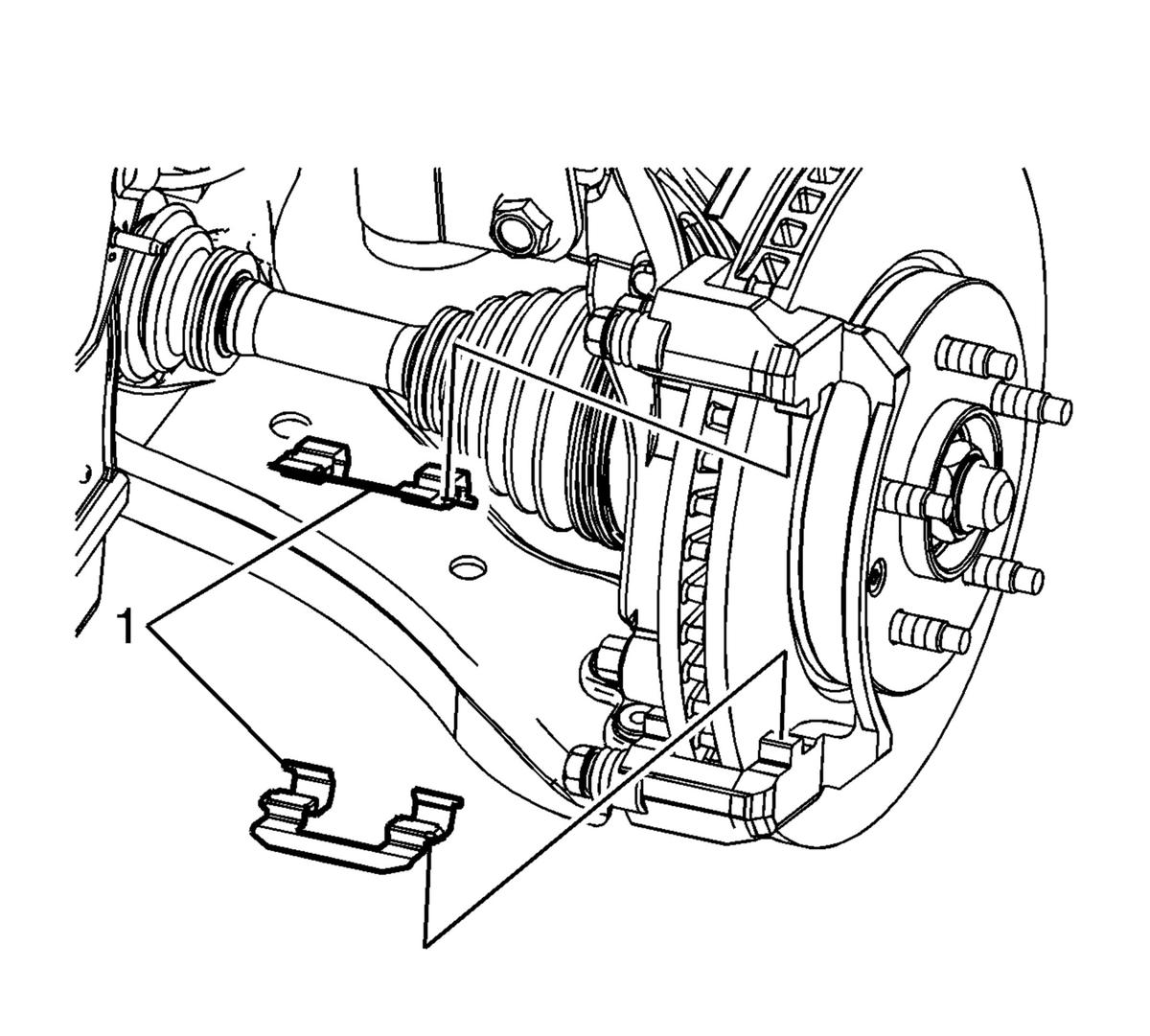

- Install the upper and lower brake pad springs (1).

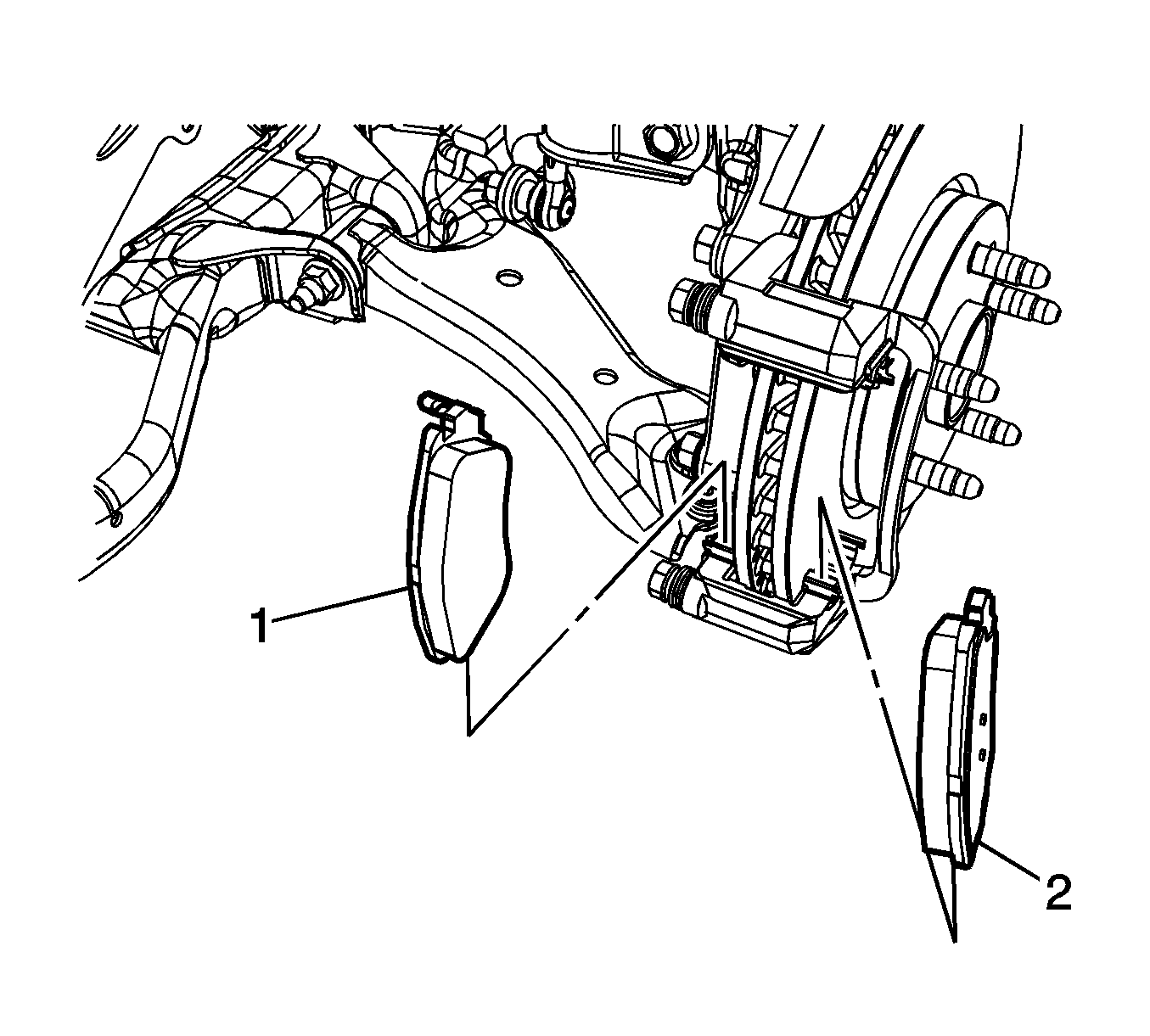

- Install the inner brake pad (1) and the outer brake pad (2).
- Position the brake caliper to the brake caliper bracket.

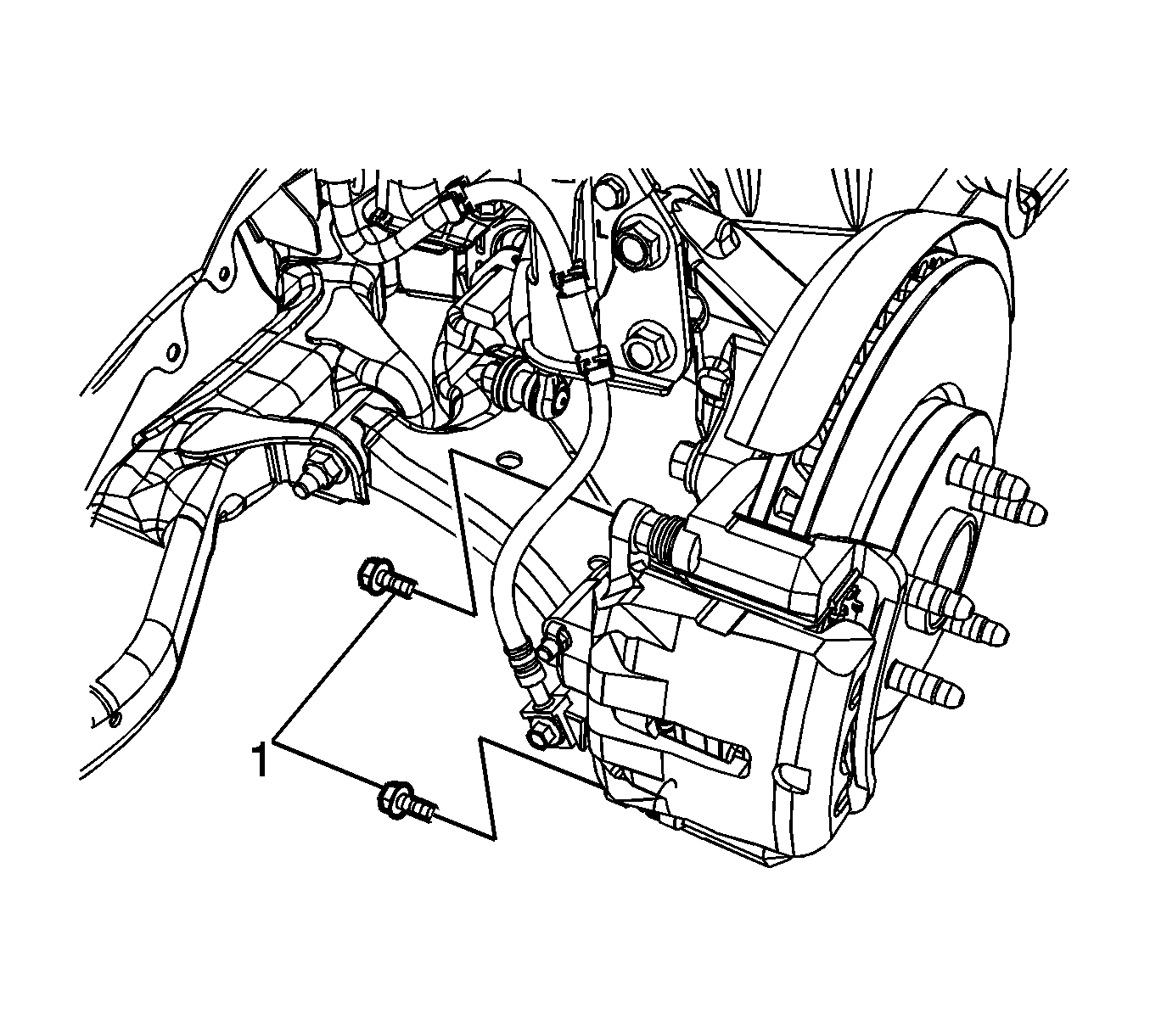

- Using a backup wrench to hold the brake caliper guide pins stationary, install the brake caliper guide pin bolts (1) and tighten to 27 N.m (20 lb ft).
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
- Slowly release the brake pedal.
- Wait 15 seconds, then repeat steps 13-14 until a firm brake pedal is obtained. This will properly seat the brake caliper piston and brake pads.
- Fill the master cylinder reservoir. Refer to Master Cylinder Reservoir Filling .
- Burnish the brake pads and rotors. Refer to Brake Pad and Rotor Burnishing .
NOTE:
The lower brake caliper guide pin is equipped with a bushing and must be installed in the same location.
NOTE:
If installing new brake pads, install new springs.
NOTE:
Note the location of the brake pad wear sensor for correct installation.
CAUTION:
Refer to Fastener Caution .
