Removal Procedure
WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Remove the front wheel bearing and hub assembly. Refer to Front Wheel Bearing and Hub Replacement (GNB)Front Wheel Bearing and Hub Replacement (GNA) .

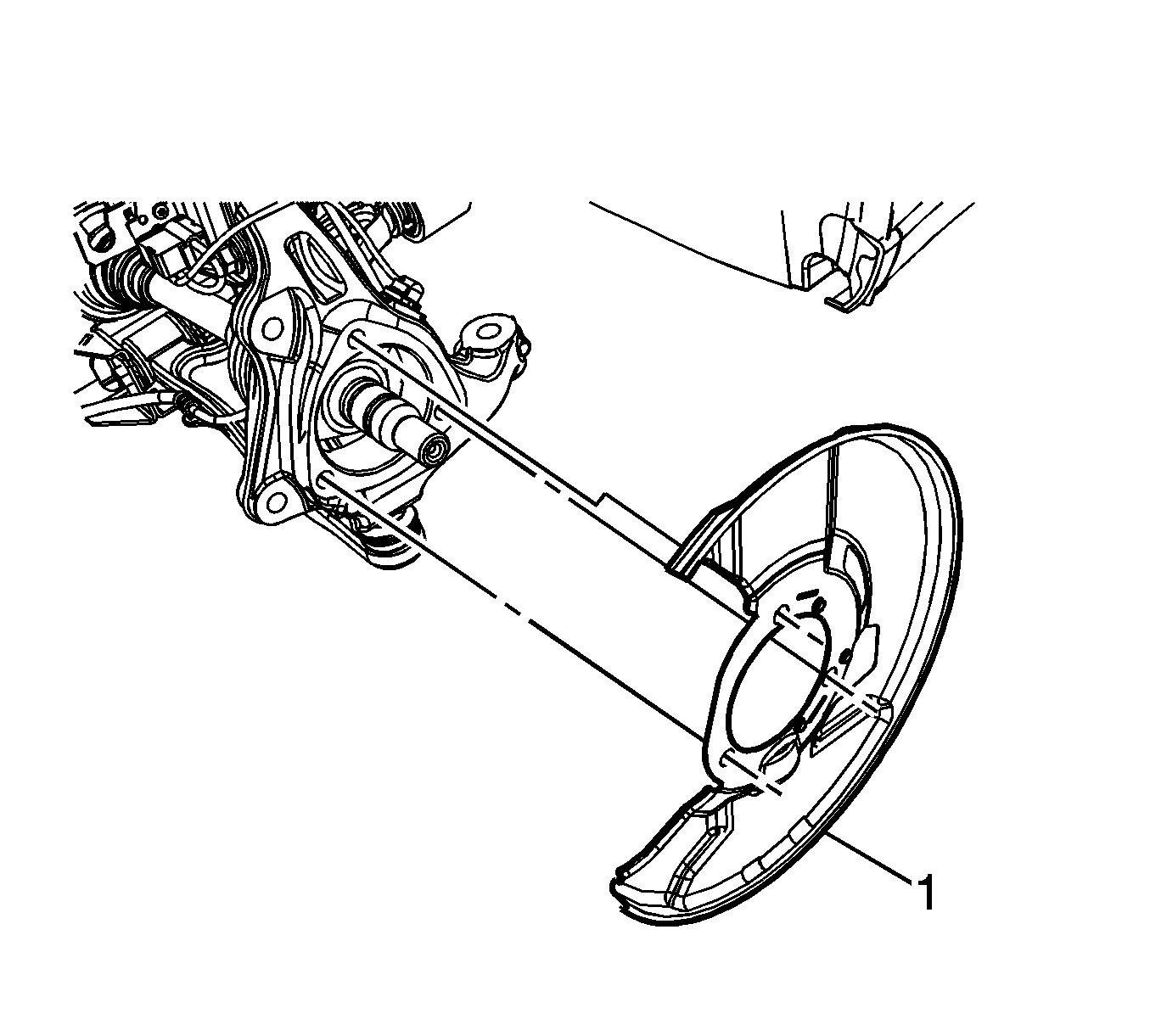

- Remove the front brake shield (1).
WARNING:
Do not use a service jack in locations other than those specified to lift this vehicle. Lifting the vehicle with a jack in those other locations could cause the vehicle to slip off the jack and roll; this could cause injury or death.
WARNING:
Refer to Brake Dust Warning .
