Installation Procedure
WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.
- If installing a new brake rotor, clean the friction surfaces of the brake rotor with denatured alcohol.
- Using the CH-42450-A Wheel Hub Resurfacing Kit, thoroughly clean any rust or corrosion from the mating surface of the hub/axle flange.
- Using the CH-41013 Rotor Resurfacing Kit, thoroughly clean any rust or corrosion from the mating surface of the rotor to the hub/axle flange.

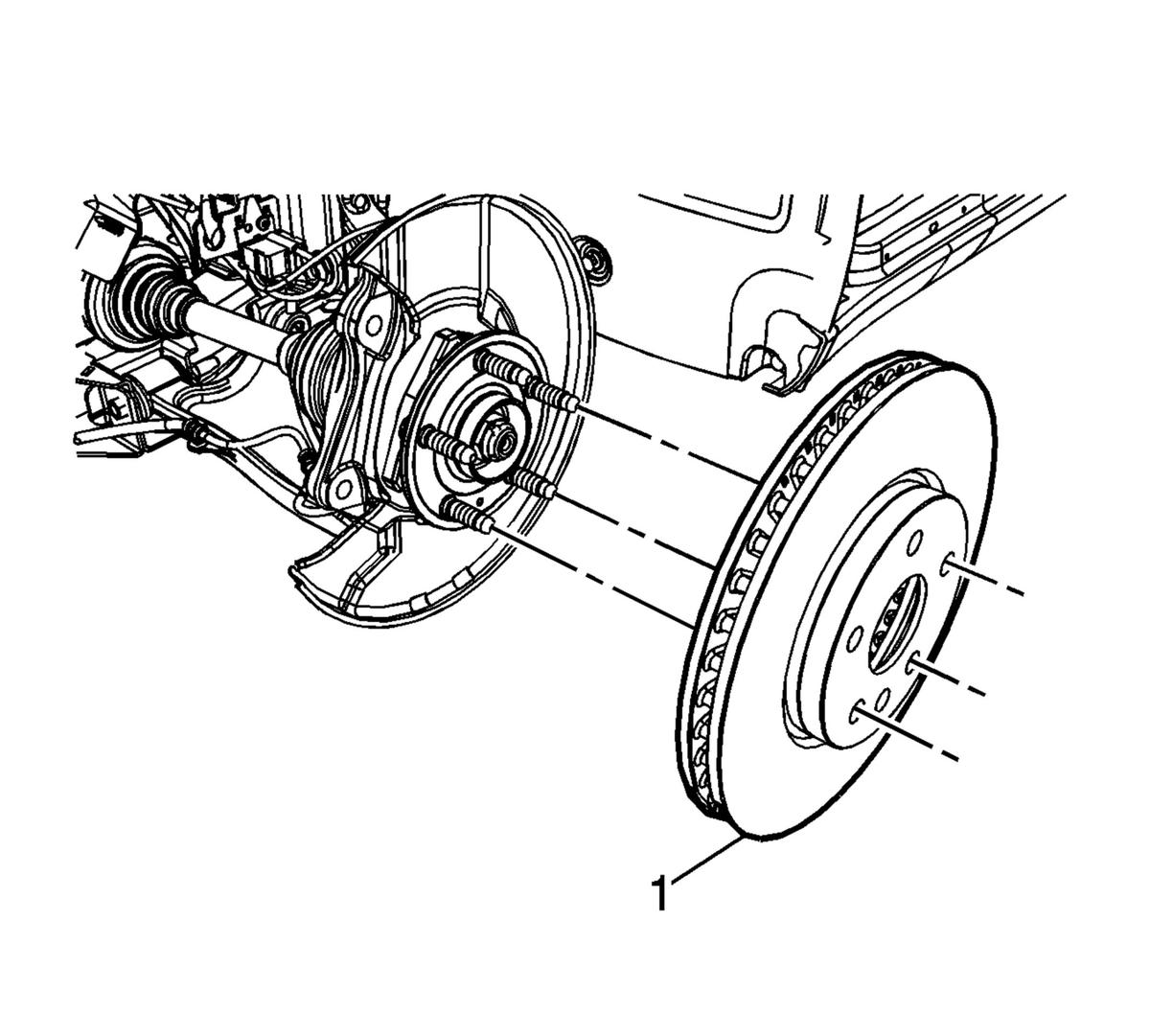

- Install the brake rotor (1).

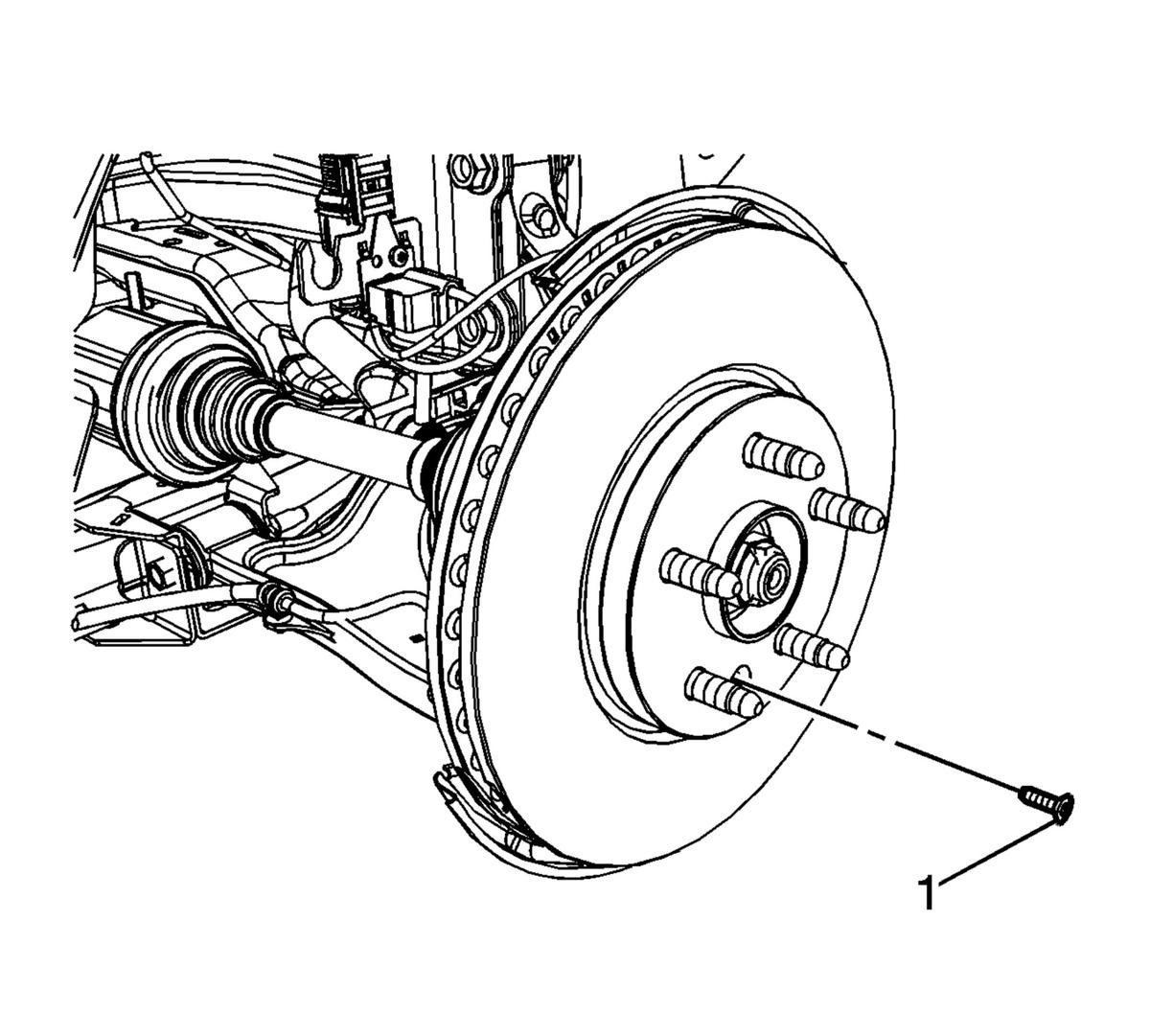

- Install the brake rotor bolt (1) and tighten to 7 N.m (62 lb in).
- Position the brake caliper and bracket assembly to the steering knuckle.

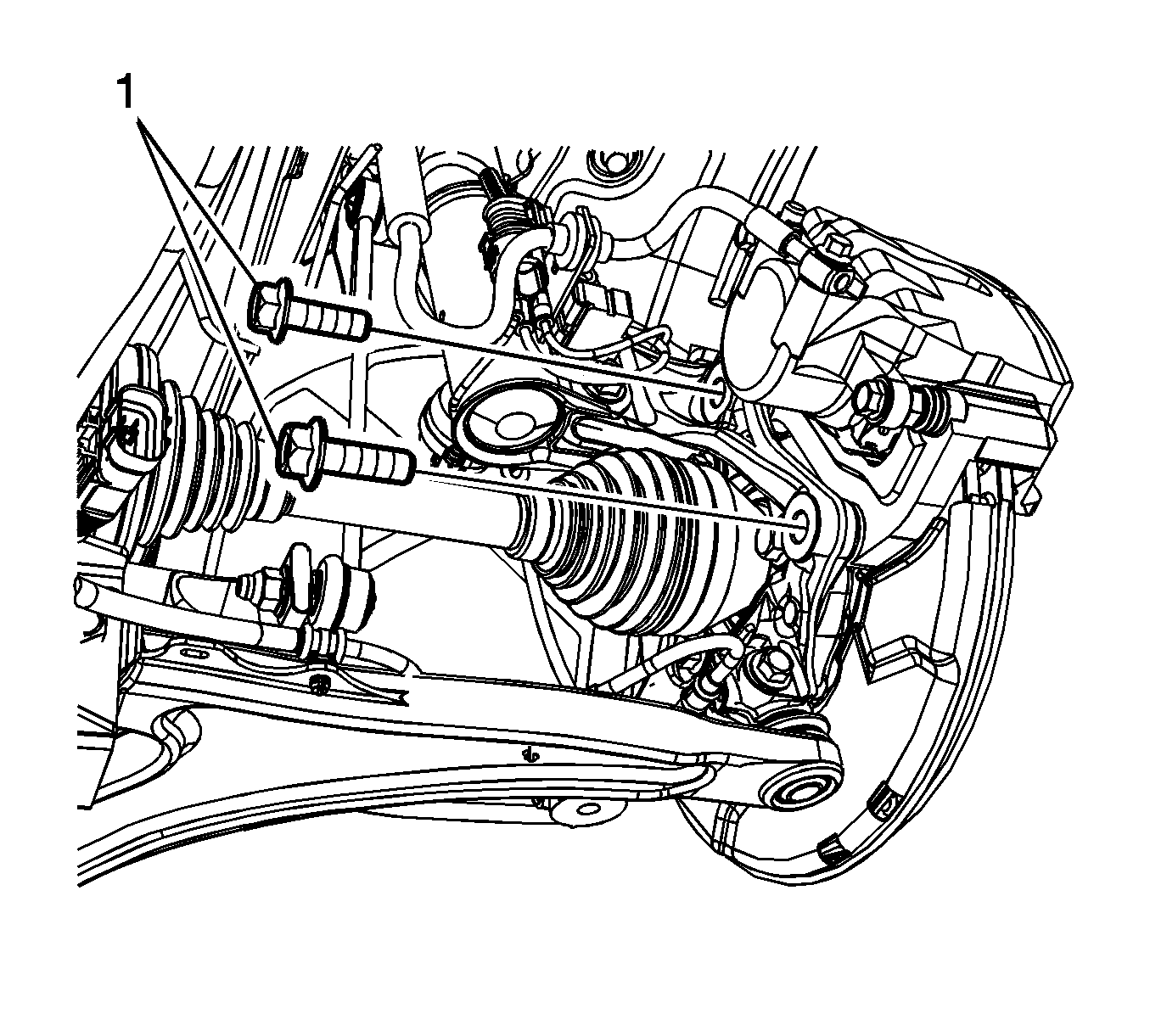

- Install new brake caliper bracket bolts (1) and tighten to 150 N.m (111 lb ft) +45 degrees + 15 degrees.
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
- Slowly release the brake pedal.
- Wait 15 seconds, then repeat steps 9-10 until a firm brake pedal is obtained. This will properly seat the brake caliper piston and brake pads.
- Burnish the brake pads and rotors. Refer to Brake Pad and Rotor Burnishing .
CAUTION:
Refer to Fastener Caution .
