Front Floor Console Compartment Replacement

WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

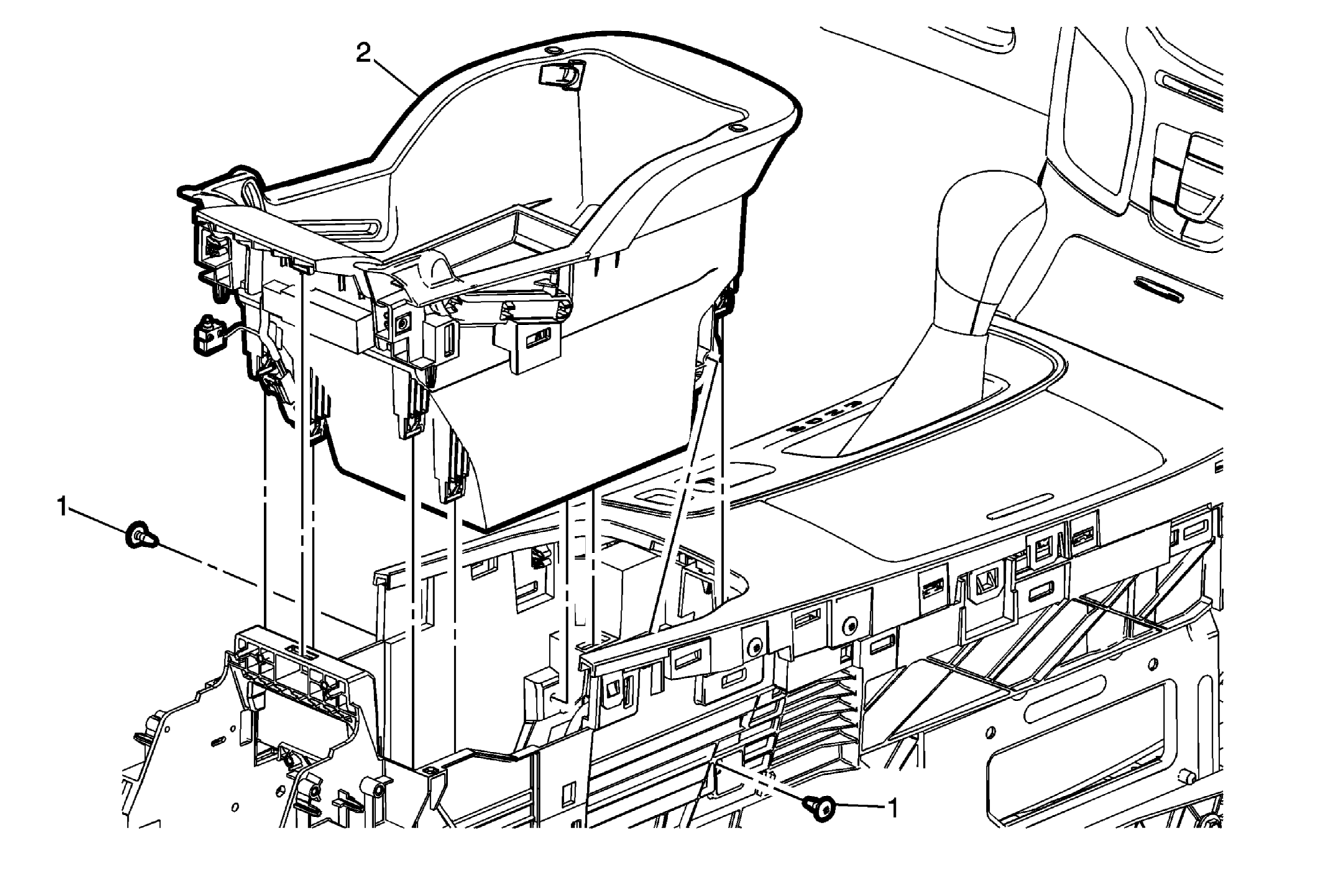

Fig 1: Front Floor Console Compartment
GM3144370Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front floor console armrest. Refer to Front Floor Console Armrest Replacement .
  2. Remove the front floor console compartment lamp. Refer to Front Floor Console Compartment Lamp Replacement
1 Front Floor Console Compartment Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Front Floor Console Compartment

Procedures

  1. Use a flat bladed plastic trim tool in order to release the retainers securing the compartment to the front floor console.
  2. Disconnect the electrical connection.
  3. Transfer components as necessary.
