Removal Procedure
WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

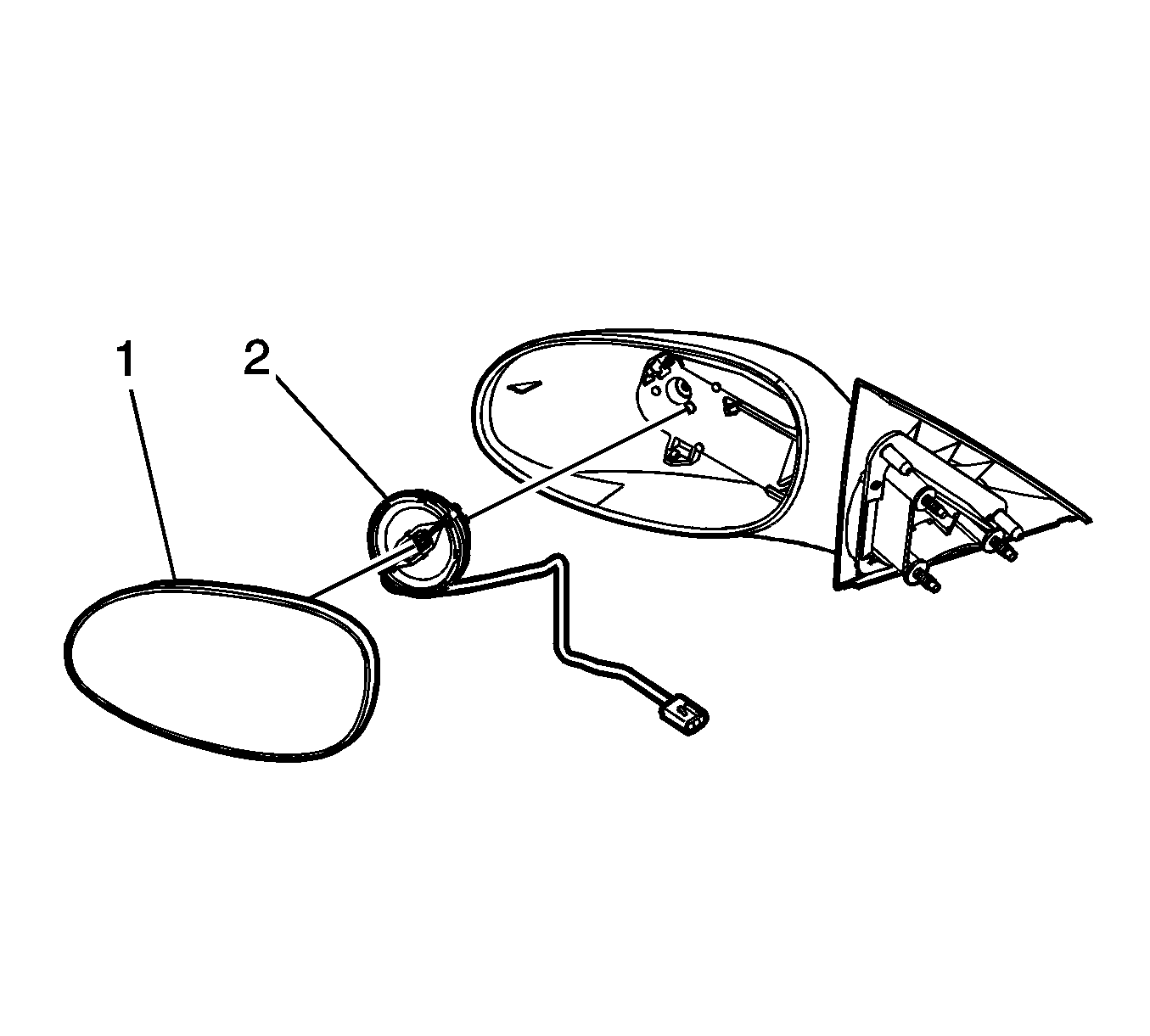

- Remove the mirror face (1). Refer to Outside Rearview Mirror Glass Replacement .
- Remove the screws from the mirror motor (2).
- Disconnect the electrical connector from the edge of the mirror motor.
Note the position of the plugs on the mirror motor when removing.
- Remove the motor.
