Audio Amplifier Power, Ground, and Serial Data (UQS)

WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

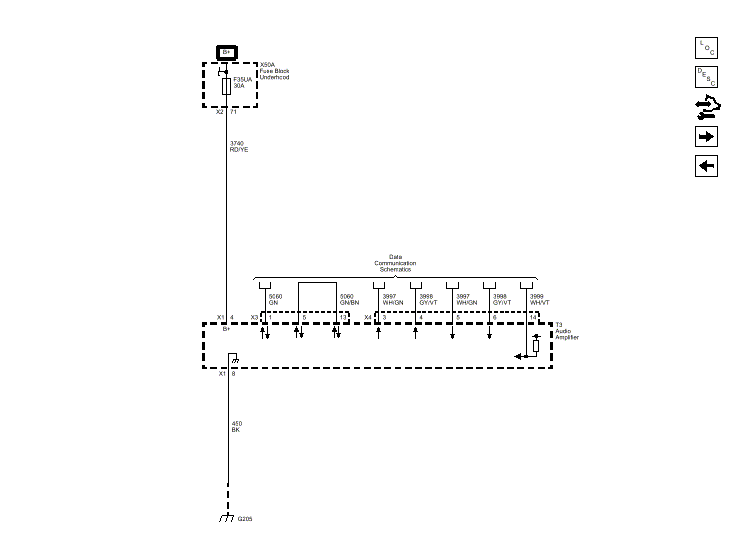

Fig 1: Audio Amplifier Power, Ground, and Serial Data (UQS)
GM4113330Courtesy of GENERAL MOTORS COMPANY
