Radio Bracket Replacement

WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

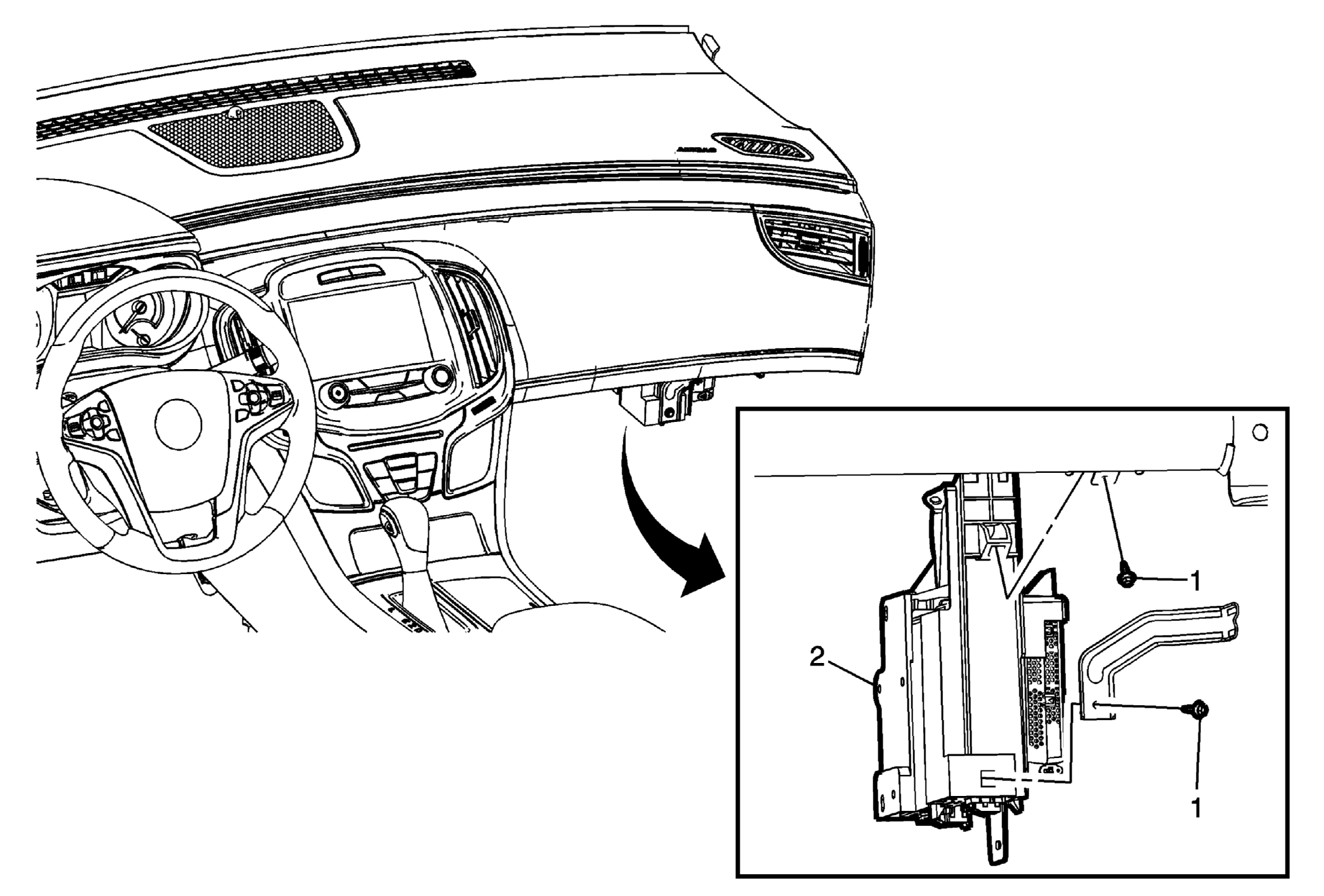

Fig 1: Radio Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the human machine interface control module. Refer to Human Machine Interface Control Module Replacement . Remove the radio. Refer to Radio Replacement .
1	Radio Bracket Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Radio Bracket Procedure Disconnect the electrical connections. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure

Remove the human machine interface control module. Refer to Human Machine Interface Control Module Replacement .
Remove the radio. Refer to Radio Replacement .

Radio Bracket Fasteners (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Radio Bracket

Procedure

Disconnect the electrical connections.
Transfer components as necessary.
