Disc Player Replacement

WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

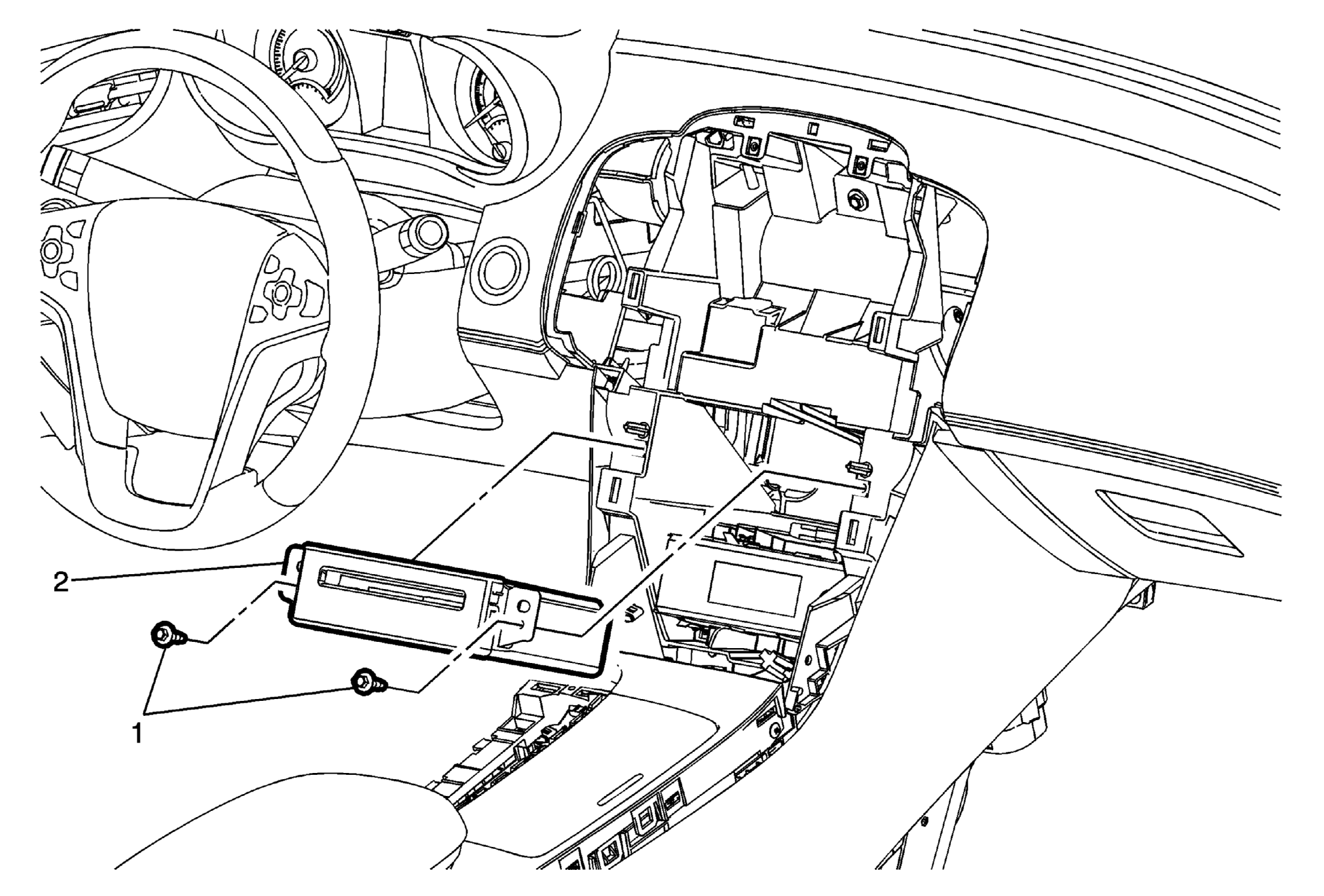

Fig 1: Disc Player

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel upper center trim panel. Refer to Instrument Panel Upper Center Trim Panel Replacement .
1	Audio Disc Player Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Audio Disc Player Procedure Disconnect the electrical connections.
