Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Replacement

WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

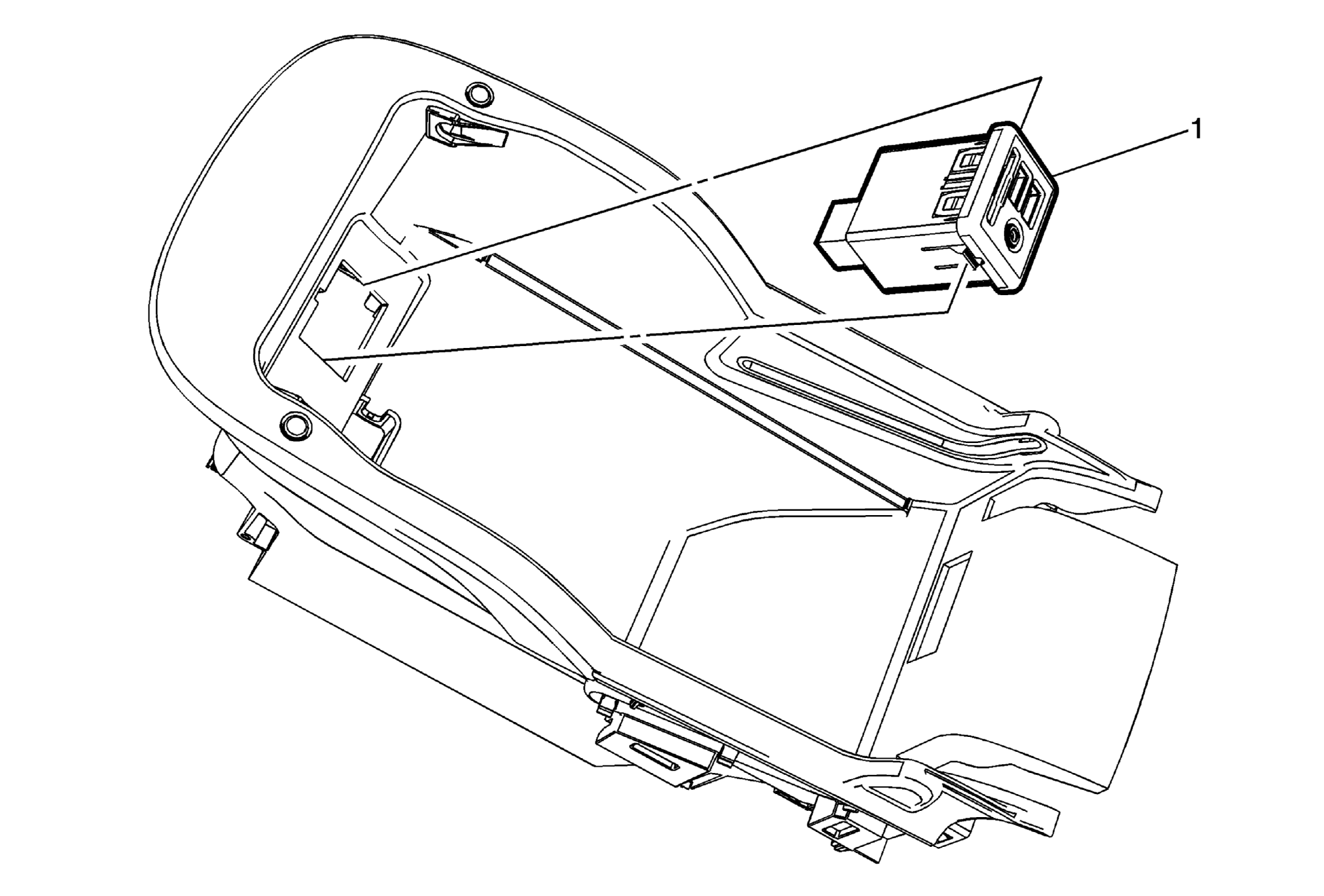

Fig 1: Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle
GM3278993Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .
1 Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle

Procedure

  1. Using the appropriate tool, depress the tabs to remove the receptacle.
  2. Disconnect the electrical connector.
