Hazard Warning Switch Replacement

WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

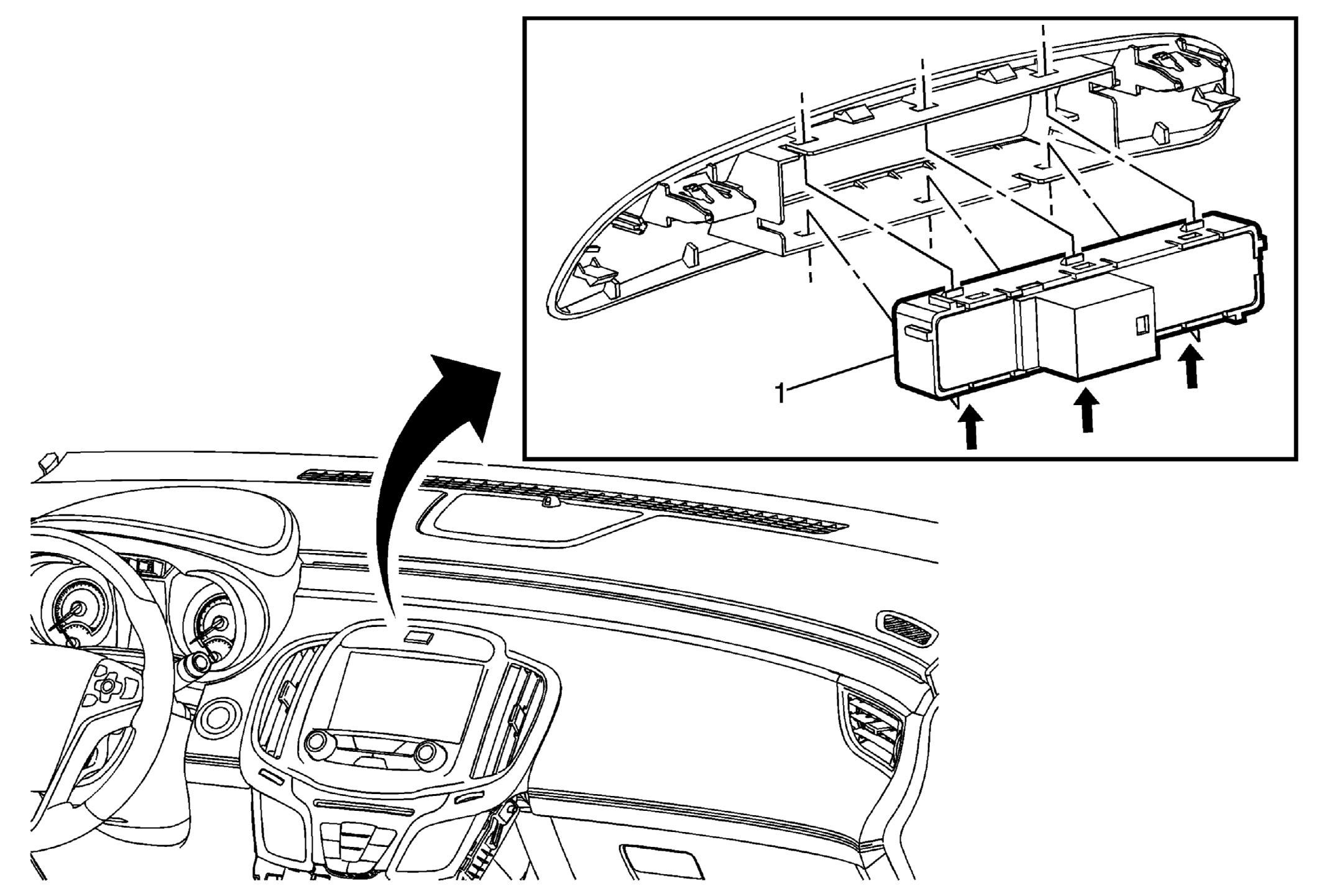

Fig 1: Hazard Warning Switch
GM3270402Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel upper trim panel cover. Refer to Instrument Panel Upper Trim Panel Cover Replacement .
1 Hazard Warning Switch
Procedure
Release the tabs to remove the switch from the cover.
