Front Floor Courtesy Lamp Replacement

WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

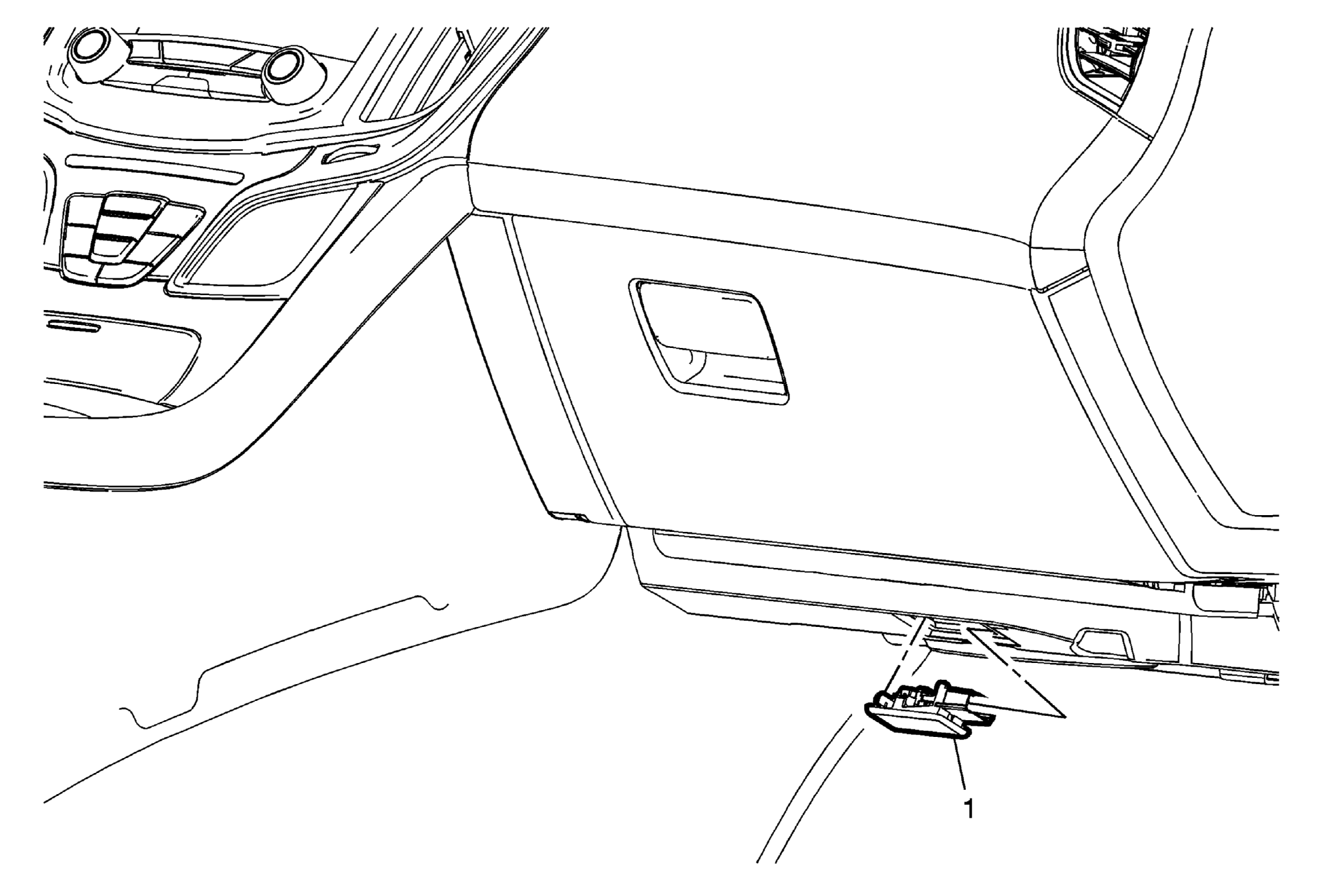

Fig 1: Front Floor Courtesy Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel insulator panel - right or left. Refer to Instrument Panel Insulator Panel Replacement - Right Side , or Instrument Panel Insulator Panel Replacement - Left Side .
1	Front Floor Courtesy Lamp Procedure Use a plastic flat bladed trim tool in order to release the lamp assembly from the instrument panel insulator. Disconnect the electrical connection.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel insulator panel - right or left. Refer to Instrument Panel Insulator Panel Replacement - Right Side , or Instrument Panel Insulator Panel Replacement - Left Side .

Front Floor Courtesy Lamp

Procedure

Use a plastic flat bladed trim tool in order to release the lamp assembly from the instrument panel insulator.
Disconnect the electrical connection.
