Power, Ground, and Low Speed GMLAN

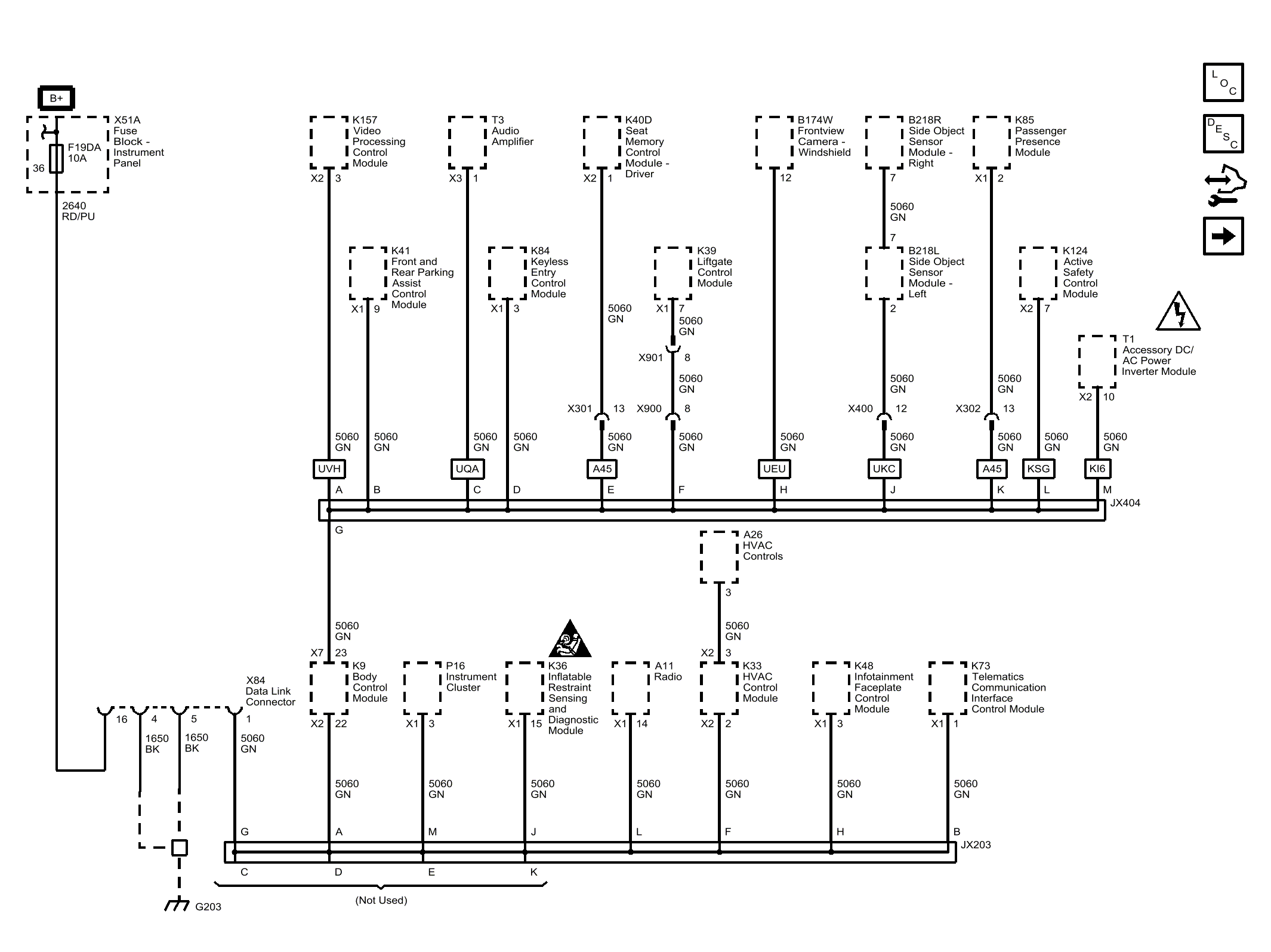

Fig 1: Power, Ground, and Low Speed GMLAN
GM3996777Courtesy of GENERAL MOTORS COMPANY
