Linear Interconnect Network (LIN) (2 of 2)

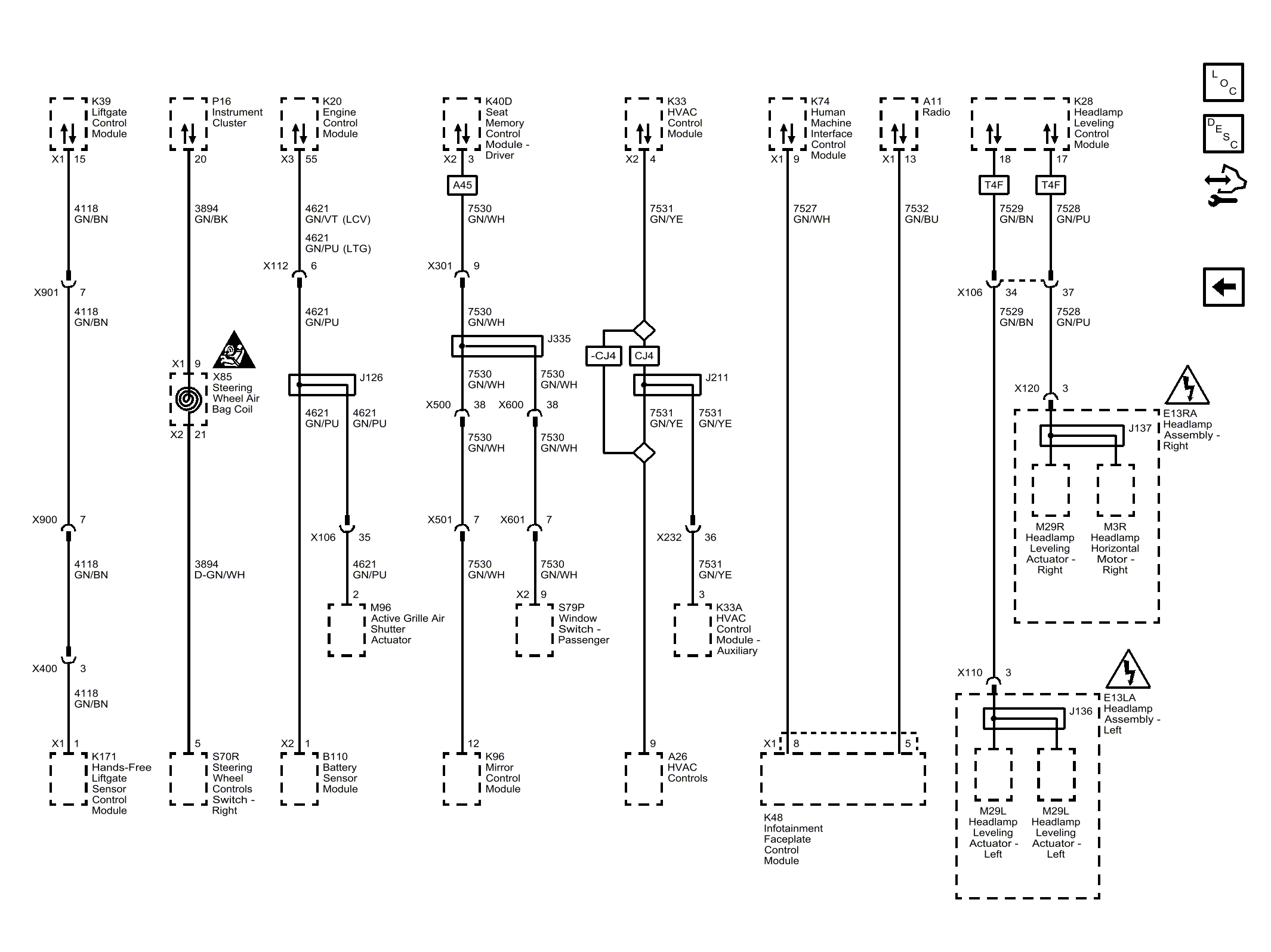

Fig 1: Linear Interconnect Network (LIN) (2 of 2)

GM3996794

Courtesy of GENERAL MOTORS COMPANY
