Manifold Absolute Pressure Sensor Replacement

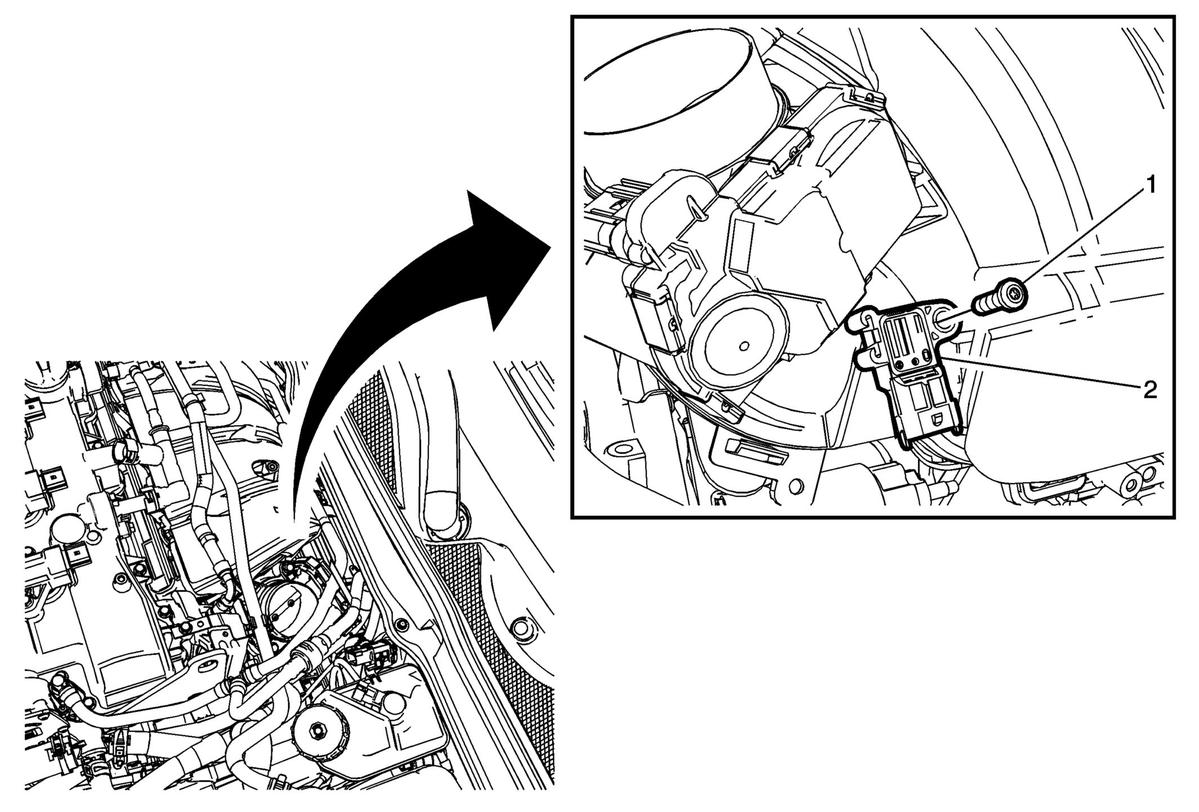

Fig 1: Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the charge air cooler outlet air tube. Refer to Charge Air Cooler Outlet Air Tube Replacement .
1	Manifold Absolute Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Manifold Absolute Pressure Sensor Procedure Disconnect the engine wiring harness electrical connector from the manifold absolute pressure sensor. Remove the manifold absolute pressure sensor from the intake manifold.

Callout

Component Name

Preliminary Procedure
Remove the charge air cooler outlet air tube. Refer to Charge Air Cooler Outlet Air Tube Replacement .

Manifold Absolute Pressure Sensor Bolt

CAUTION:

Tighten
5 N.m (44 lb in)

Manifold Absolute Pressure Sensor

Procedure

Disconnect the engine wiring harness electrical connector from the manifold absolute pressure sensor.
Remove the manifold absolute pressure sensor from the intake manifold.
