Fuel Tank Pressure Sensor Replacement

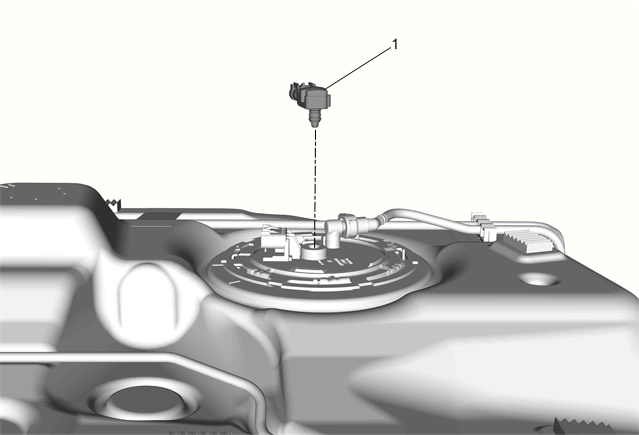

Fig 1: Fuel Tank Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Fuel Tank Replacement
1	Fuel Tank Pressure Sensor Procedure Disconnect the wiring harness from the fuel tank pressure sensor. Remove the dust cap from the old sensor and install on the new fuel tank pressure sensor.

Callout

Component Name

Preliminary Procedures
Fuel Tank Replacement

Fuel Tank Pressure Sensor

Procedure

Disconnect the wiring harness from the fuel tank pressure sensor.
Remove the dust cap from the old sensor and install on the new fuel tank pressure sensor.
