Installation Procedure

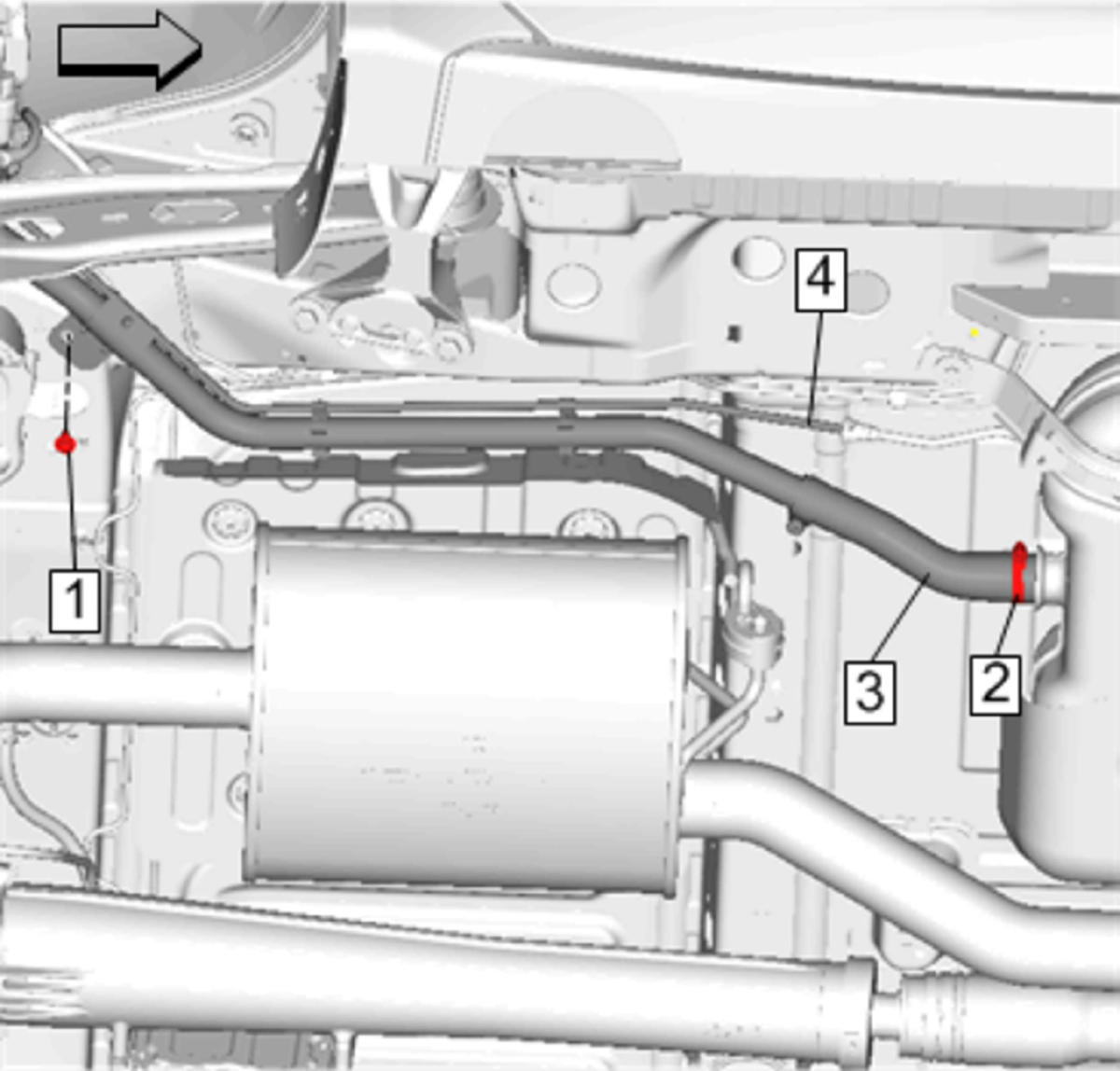

    Fig 1: Fuel Tank Filler Pipe, Bolt And Clamp
    GM4374766Courtesy of GENERAL MOTORS COMPANY
  1. Connect the fuel tank filler pipe hose (4) to the fuel pipe. Refer to Plastic Collar Quick Connect Fitting Service .
    2. CAUTION:

    Refer to Fastener Caution

  2. Install the fuel tank filler pipe hose clamp (2) and tighten to 4 N.m (35 lb in).
  3. Install the fuel tank filler pipe bolt (1) to the fuel tank filler pipe (3) and tighten to 9 N.m (80 lb in).
  4. Install the underbody rear air deflector right side. Refer to Underbody Rear Air Deflector Replacement - Right Side .
    5. Fig 2: Fuel Tank Filler Pipe
    GM3931214Courtesy of GENERAL MOTORS COMPANY
  5. Install the fuel tank filler pipe bolt (1) to the fuel tank filler pipe (2) and tighten to 9 N.m (80 lb in).
  6. Install the rear wheelhouse liner. Refer to Rear Wheelhouse Liner Replacement .
