Fuel Tank Filler Hose Replacement

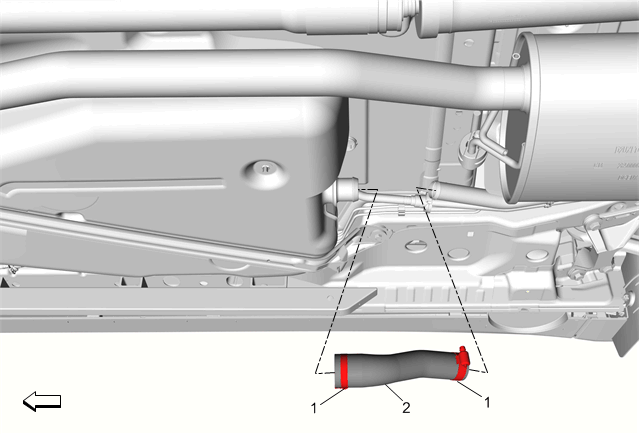

Fig 1: Fuel Tank Filler Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the underbody rear air deflector right side. Refer to Underbody Rear Air Deflector Replacement - Right Side .
1	Fuel Tank Filler Hose Clamps (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 4 N.m (35 lb in)
2	Fuel Tank Filler Hose

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the underbody rear air deflector right side. Refer to Underbody Rear Air Deflector Replacement - Right Side .

Fuel Tank Filler Hose Clamps (Qty: 2)

CAUTION:

Tighten
4 N.m (35 lb in)

Fuel Tank Filler Hose
