Fuel Feed Pipe Replacement (Engine)

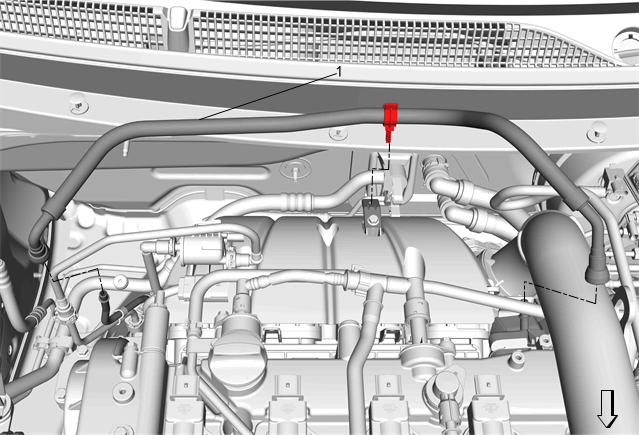

Fig 1: Fuel Feed Pipe (Engine)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Relieve the fuel system pressure. Refer to Fuel Pressure Relief .
1	Fuel Feed Pipe Procedure Disconnect the quick disconnects and remove retainer from bracket. Refer to Metal Collar Quick Connect Fitting Service .

Callout

Component Name

Preliminary Procedures

Fuel Feed Pipe
Procedure
Disconnect the quick disconnects and remove retainer from bracket. Refer to Metal Collar Quick Connect Fitting Service .
