Charge Air Cooler Replacement

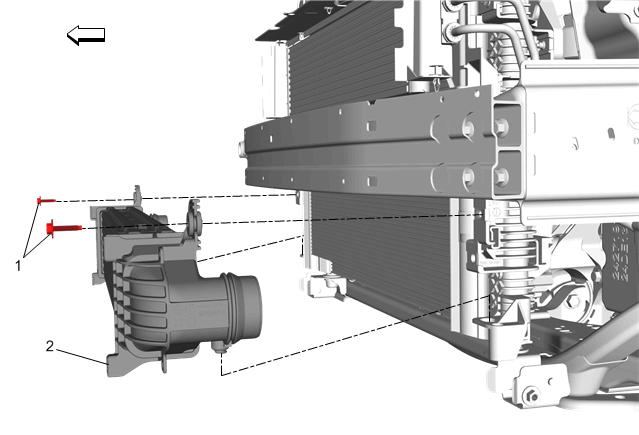

Fig 1: Charge Air Cooler

GM3920233

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the front bumper shutter. Refer to Front Bumper Shutter Replacement .
Remove the radiator air lower baffle. Refer to Radiator Air Lower Baffle Replacement .
Remove the charge air cooler outlet air tube. Refer to Charge Air Cooler Outlet Air Tube Replacement .
Remove the charge air cooler inlet air tube. Refer to Charge Air Cooler Inlet Air Tube Replacement .

1

Charge Air Cooler Bolts (Qty :2)

CAUTION:

Refer to Fastener Caution .

Tighten
6 N.m (53 lb in)

2

Charge Air Cooler
