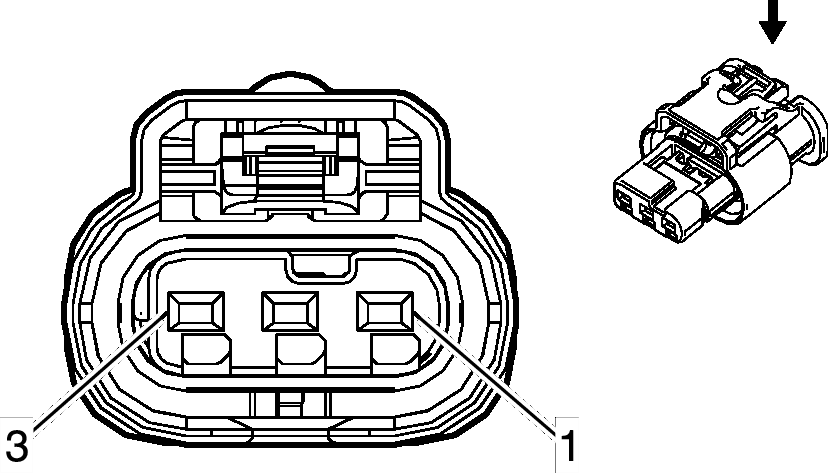

B94LF Side Object Sensor - Left Front
|
|
Connector Part Information
- Harness Type: Front Fascia
- OEM Connector: 1488991-6
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 1.2 MCP Series, Sealed (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE/VT |
5213 |
Front Parking Left/Right/Mid Sensor |
I |
UFQ |
| 2 |
0.5 |
GY |
3154 |
Left Front Supplemental Object Sensor Signal |
I |
UFQ |
| 3 |
0.5 |
BK/BU |
5214 |
Front Parking Sensor Low Reference |
I |
UFQ |
