Liftgate Engine Nameplate Replacement

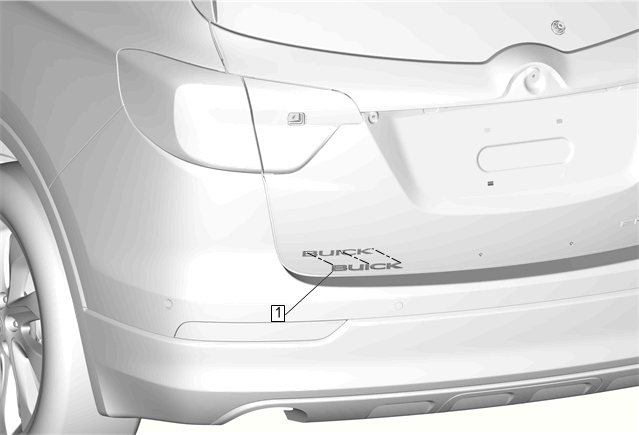

Fig 1: Liftgate Engine Nameplate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Liftgate Engine Name Plate CAUTION: Refer to Exterior Trim Emblem Removal Caution . Procedure The part and surface temperature should be at 21°C (70°F) prior to installation. The vehicle temperature should remain at 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength. Use a heat gun or equivalent to remove the emblem. Use a plastic flat bladed tool to assist in removal. Remove any remaining adhesive residue with a 50/50 mixture by volume of isopropyl alcohol and clean drinkable water. Wipe the surface dry with a clean lint-free towel. When removing protective liners from the adhesive tape, be careful not to touch tape with hands and do NOT allow tape to come in contact with dirt or any foreign matter prior to adhesion. Using the palm of the hand, wet out the emblem to ensure full adhesion is made.

Callout

Component Name

Liftgate Engine Name Plate

CAUTION:

Procedure

The part and surface temperature should be at 21°C (70°F) prior to installation. The vehicle temperature should remain at 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength.
Use a heat gun or equivalent to remove the emblem. Use a plastic flat bladed tool to assist in removal.
Remove any remaining adhesive residue with a 50/50 mixture by volume of isopropyl alcohol and clean drinkable water. Wipe the surface dry with a clean lint-free towel.
When removing protective liners from the adhesive tape, be careful not to touch tape with hands and do NOT allow tape to come in contact with dirt or any foreign matter prior to adhesion.
Using the palm of the hand, wet out the emblem to ensure full adhesion is made.
