Disc Player Replacement

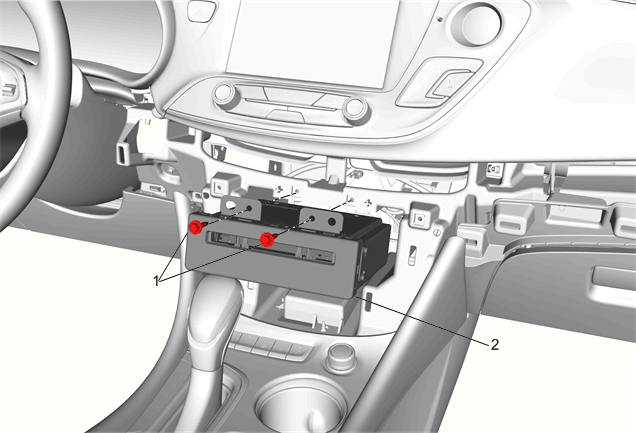

Fig 1: Disc Player

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Instrument Panel Lower Center Trim Plate Applique Replacement Instrument Panel Lower Trim Plate Applique Replacement - Right Side Instrument Panel Outer Air Outlet Bezel Replacement (Center)
1	Disc Player Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Disc Player Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Disc Player Fastener

CAUTION:

Tighten
2.5 N.m (22 lb in)

Disc Player
Procedure
Disconnect the electrical connector.
