Forward Collision Alert and Lane Assist (UEU without UGN)

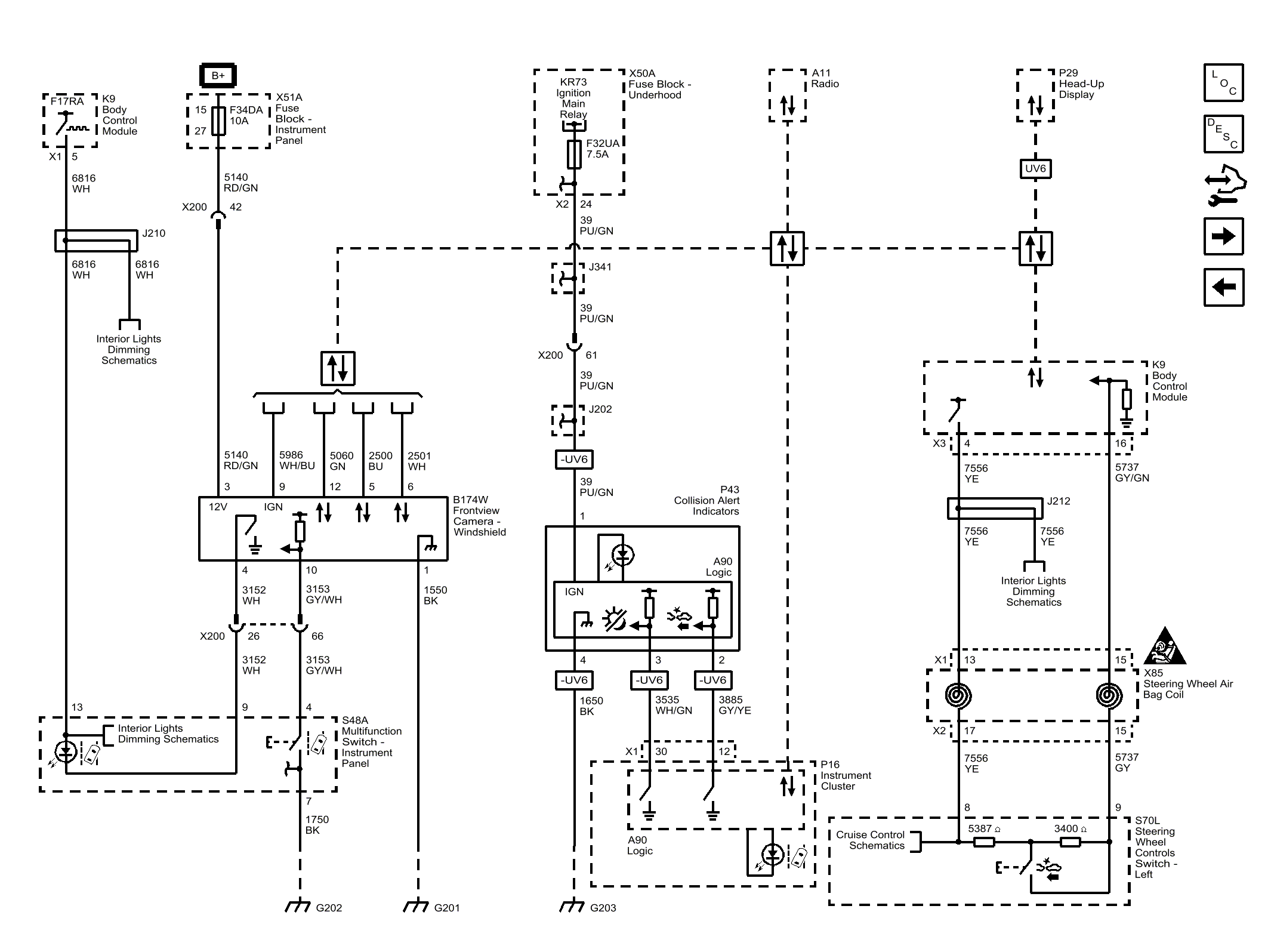

Fig 1: Forward Collision Alert and Lane Assist (UEU without UGN)

GM3997112

Courtesy of GENERAL MOTORS COMPANY
