360 Degree Vision - Power, Ground, and Serial Data (UVH)

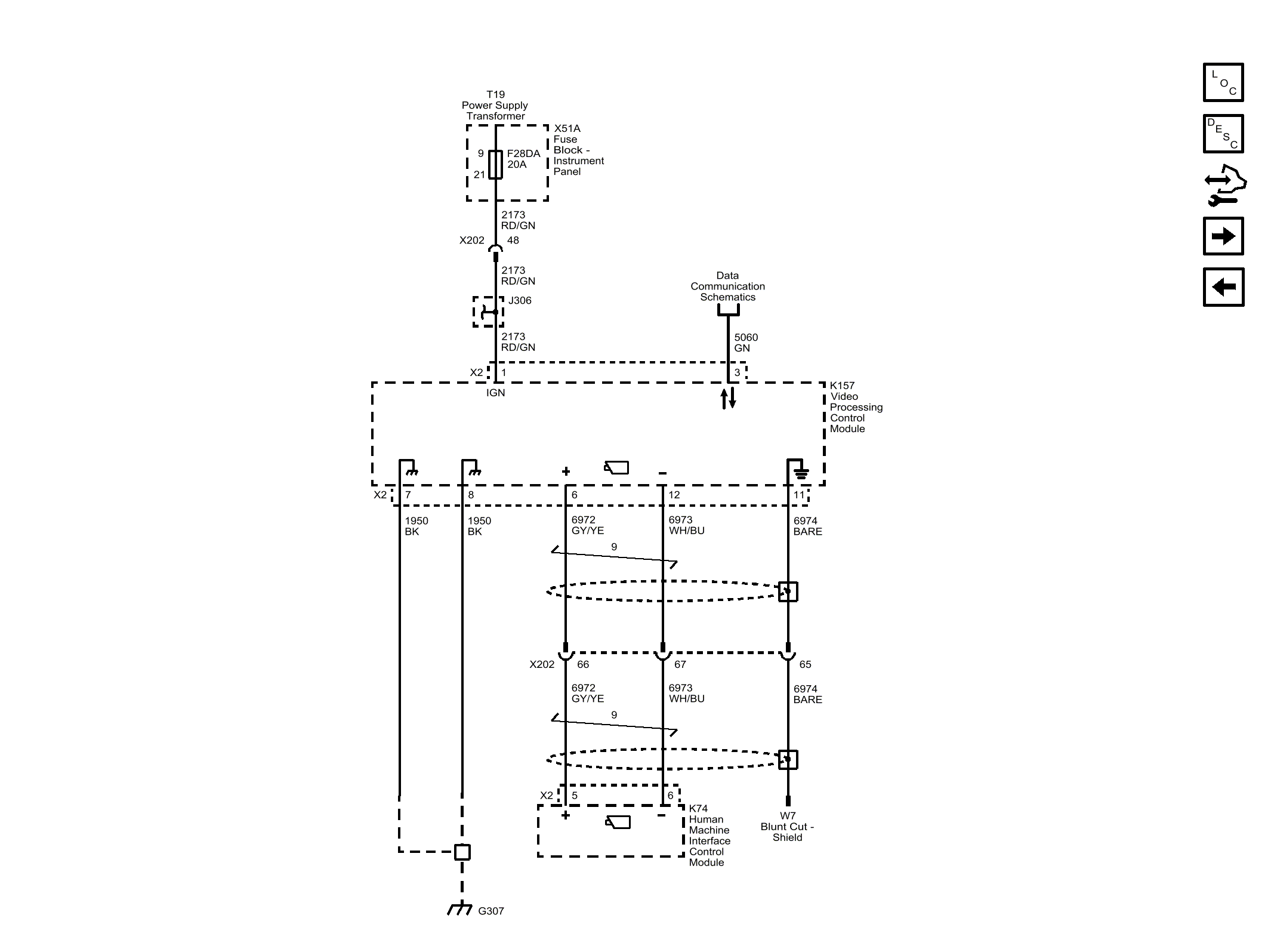

Fig 1: 360 Degree Vision - Power, Ground, and Serial Data (UVH)

GM4057946

Courtesy of GENERAL MOTORS COMPANY
