Accelerator Pedal with Position Sensor Assembly Replacement

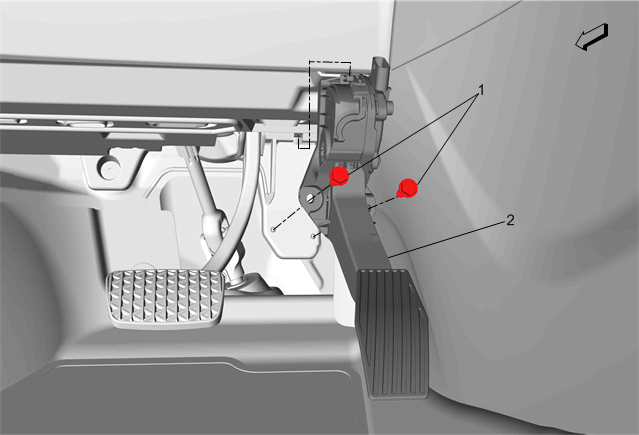

Fig 1: Accelerator Pedal with Position Sensor Assembly
GM3823826Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
1 Accelerator Pedal with Position Sensor Assembly Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
6 N.m (53 lb in)
2 Accelerator Pedal with Position Sensor Assembly
Procedure
Disconnect the electrical wiring harness connector from the accelerator pedal with position sensor assembly.
