Communication Interface Module Battery Replacement (Encore)

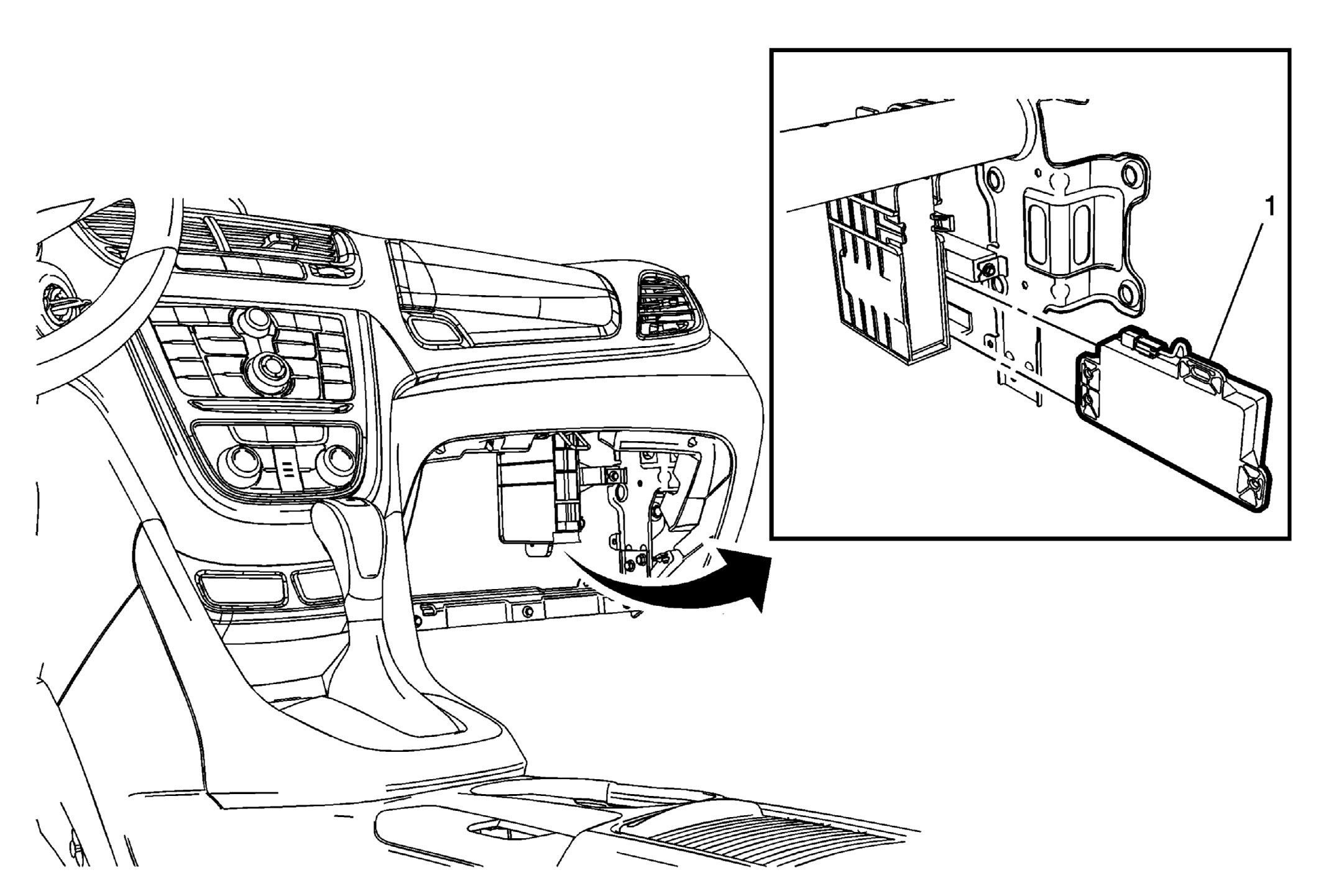

Fig 1: Communication Interface Module Battery (Encore)

GM2885136

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement (Encore) .

1

Communication Interface Module Battery

Procedure

Slide the battery out of the bracket.
Disconnect the electrical connections.
For programming and set up procedures, refer to Control Module References .
