Turn Signal Switch Replacement (Encore)

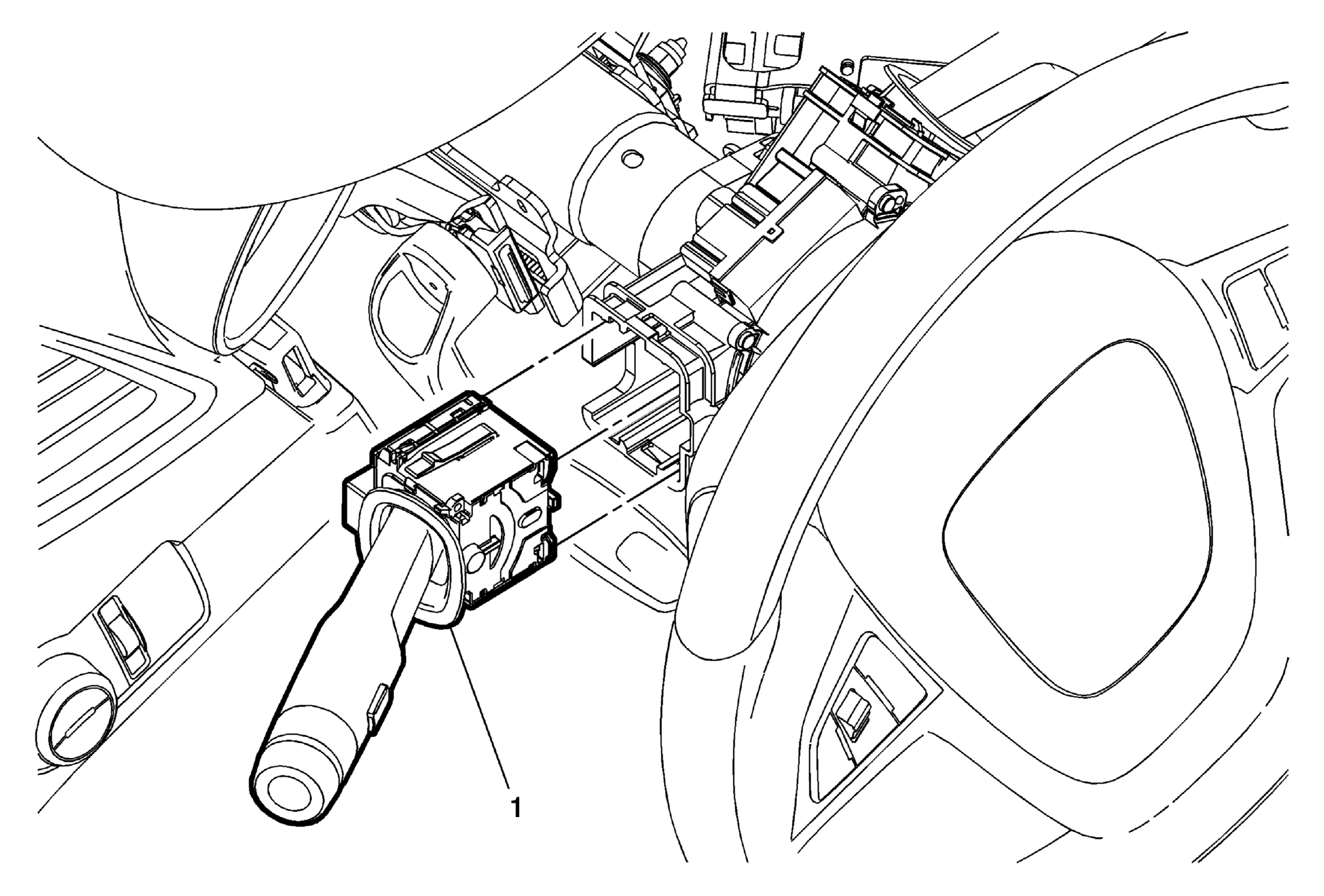

Fig 1: Turn Signal Switch (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Column Lower Trim Cover Replacement (Encore)
1	Turn Signal Switch Procedure Disconnect the electrical connector. Release the retaining tabs and remove the turn signal switch from the turn signal switch bracket.

Callout

Component Name

Turn Signal Switch

Procedure

Disconnect the electrical connector.
Release the retaining tabs and remove the turn signal switch from the turn signal switch bracket.
