Turn Signal Switch Bracket Replacement

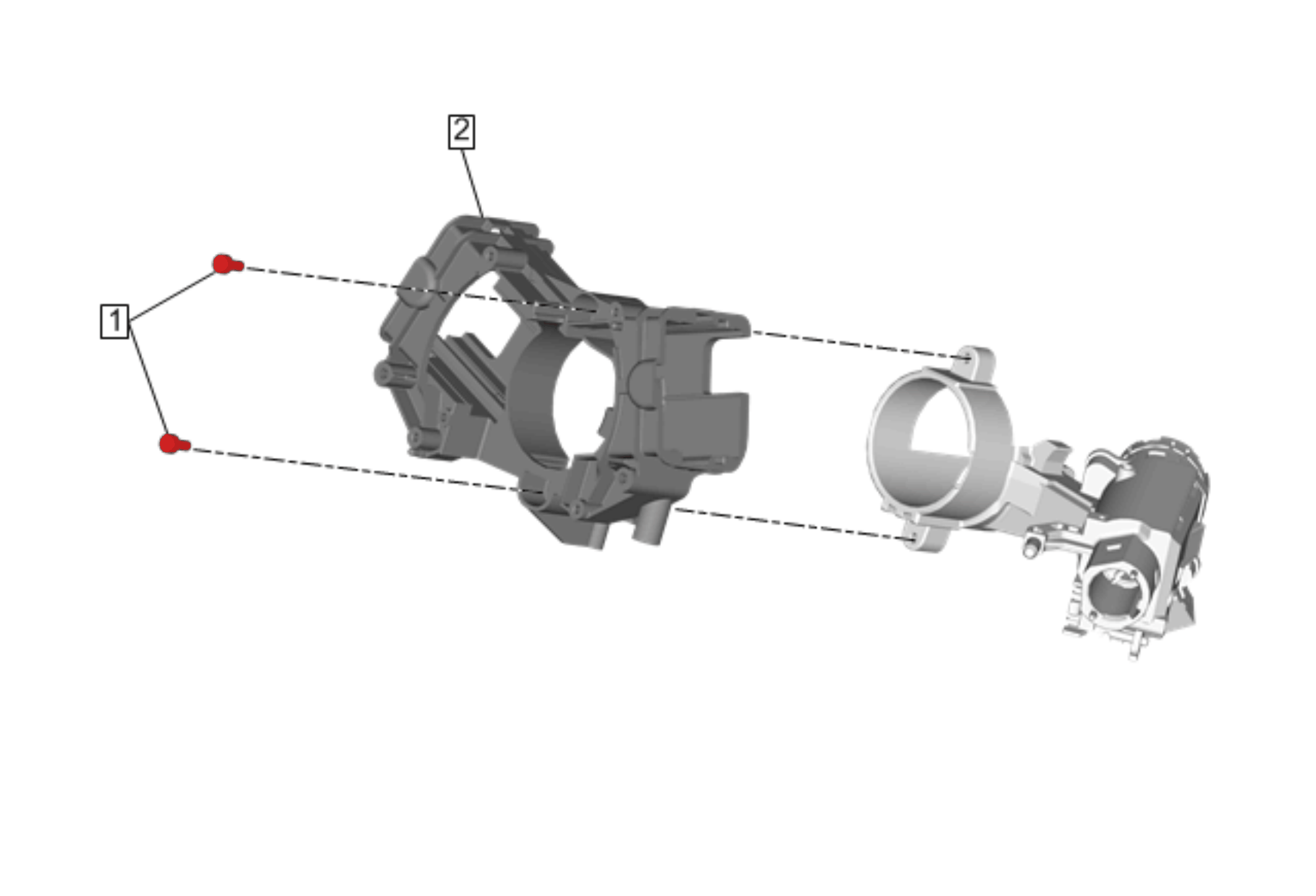

Fig 1: Turn Signal Switch Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Ignition and Start Switch Housing Replacement (Encore)Ignition and Start Switch Housing Replacement (Trax)
1	Turn Signal Switch Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten  15 N.m (11 lb ft)
2	Turn Signal Switch Bracket
