Radio and Telephone Control Switch Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

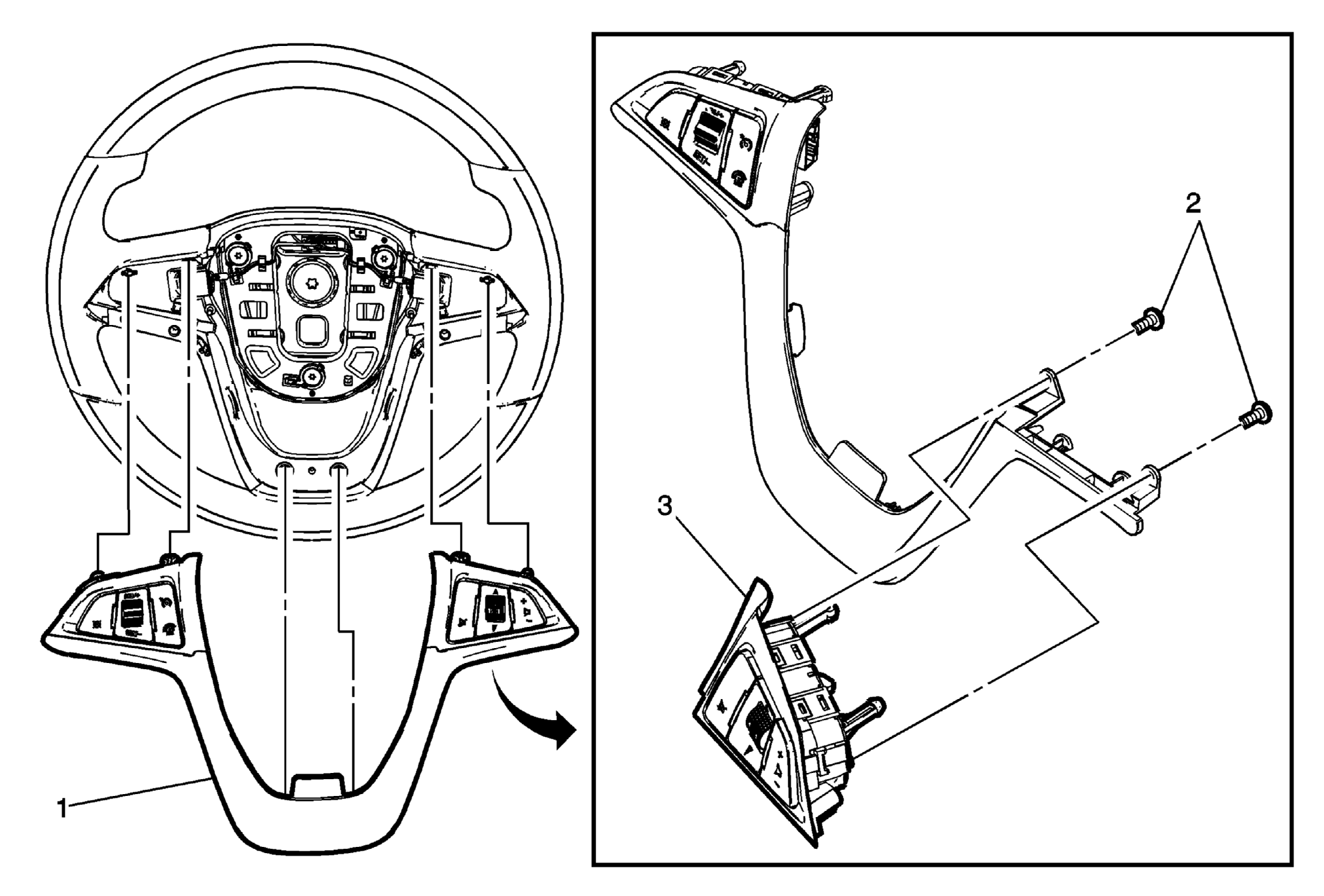

Fig 1: Radio and Telephone Control Switch
GM2857692Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the steering wheel airbag. Refer to Steering Wheel Airbag Replacement .
1 Steering Wheel Bezel Assembly
Procedure
  1. Disconnect the electrical connectors.
  2. Use the appropriate tool to gently release the bezel assembly from the steering wheel.
2 Radio and Telephone Control Switch Fasteners (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
3 Radio and Telephone Control Switch
