Radio Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

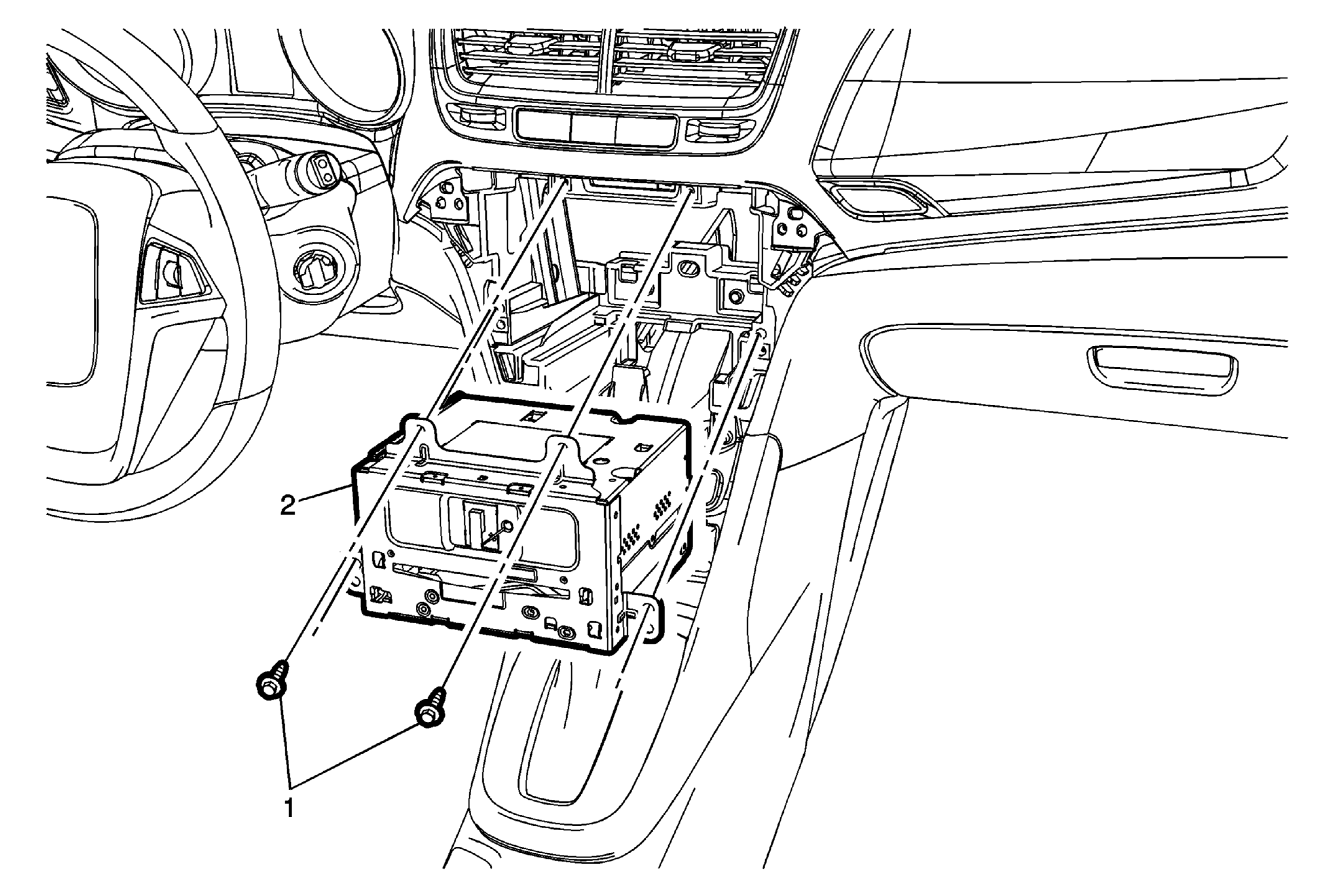

Fig 1: Radio (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the radio control assembly. Refer to Radio Control Assembly Replacement (Encore) .
1	Radio Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Assembly Procedure Disconnect the electrical connections. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure
Remove the radio control assembly. Refer to Radio Control Assembly Replacement (Encore) .

Radio Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Radio Assembly

Procedure

Disconnect the electrical connections.
Refer to Control Module References for programming and setup information.
