Mobile Telephone Microphone Replacement (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the roof console. Refer to Roof Console Replacement . |
|

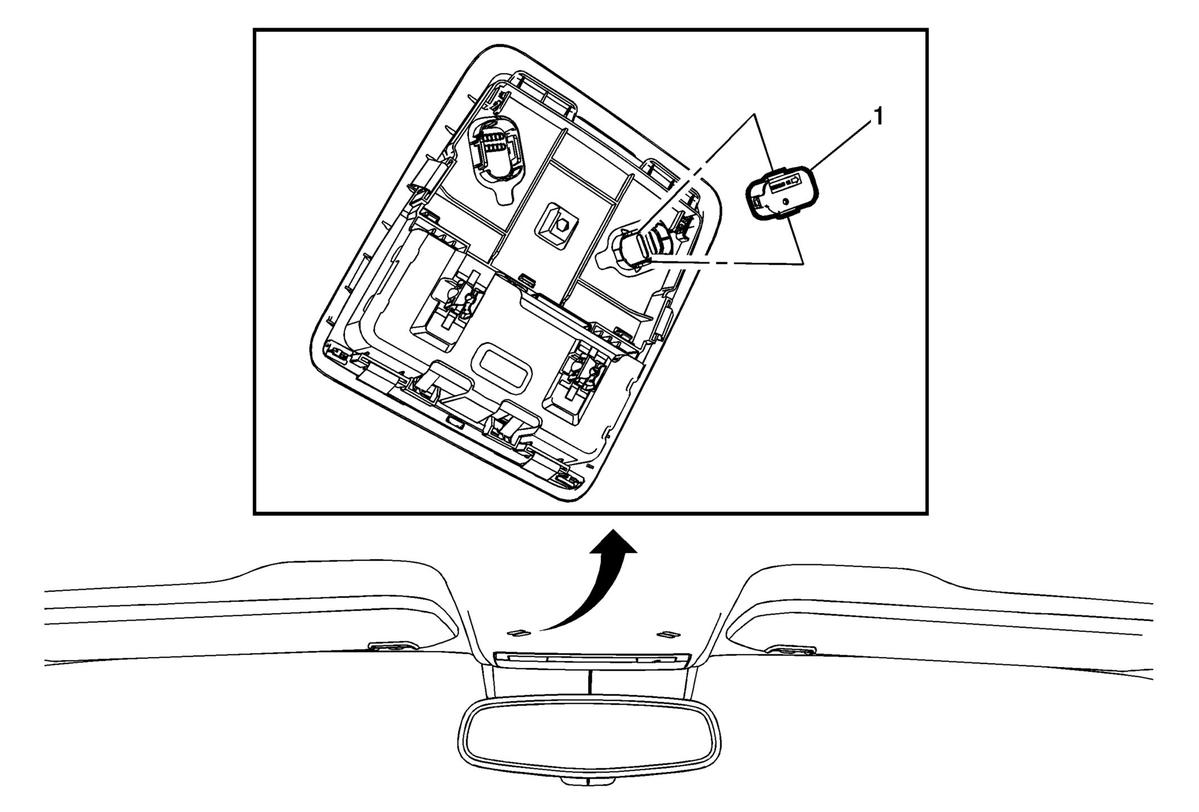

| 1 | Mobile Telephone Microphone Procedure Release the locking tabs securing the mobile telephone microphone to the roof console. |
