Audio Disc Player and USB Receptacle Replacement (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
|
Preliminary Procedure
- Perform the steps to fully open the instrument panel compartment to access the back side of the upper instrument panel compartment. Refer to Instrument Panel Compartment Replacement
.
- Open the instrument panel upper compartment door.
|

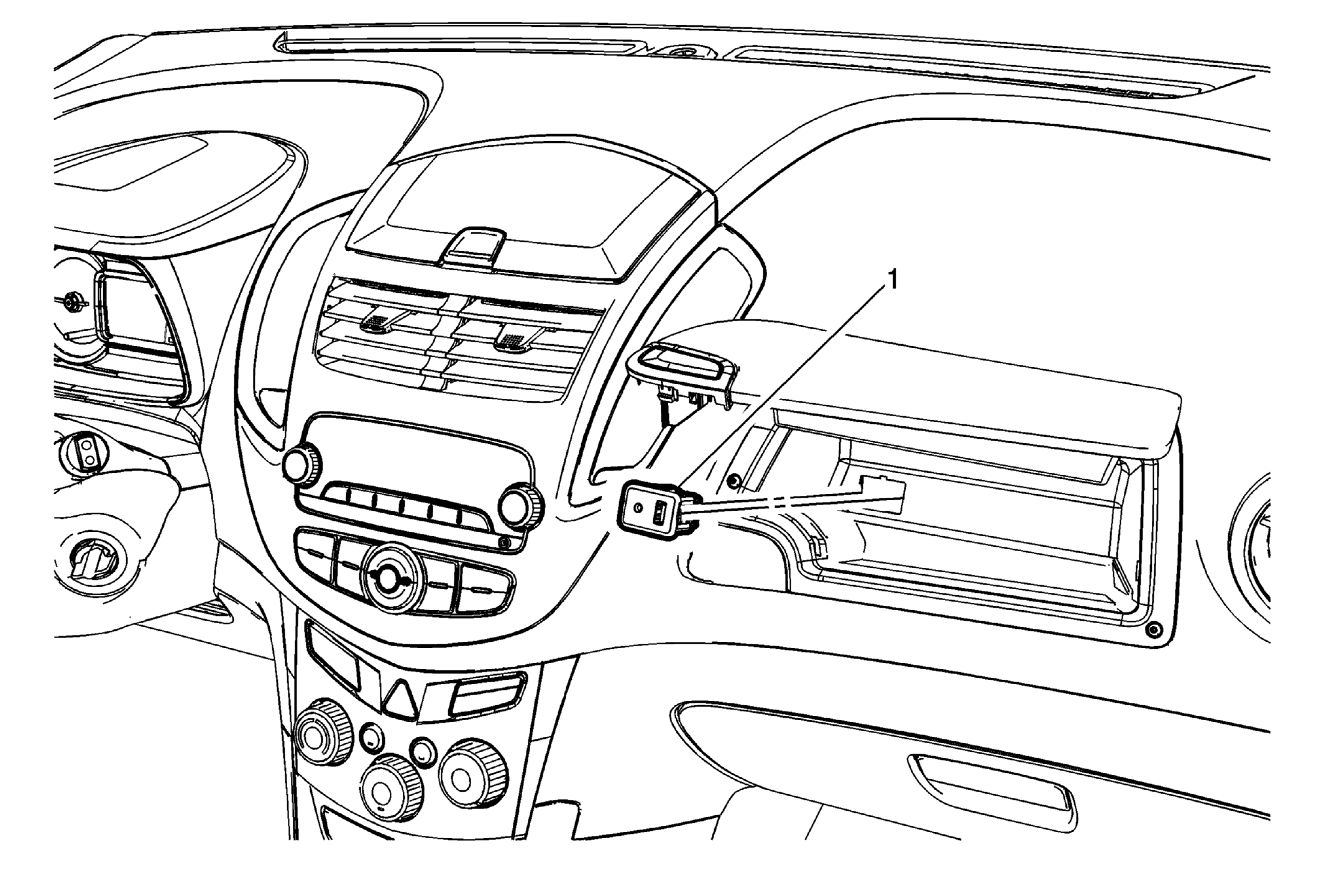

| 1 |
Audio Disc Player and USB Receptacle Procedure
- Disconnect the electrical connector.
- From the back side of the instrument panel upper compartment, gently depress the tabs to remove.
|
