Section 24 (Data Communication System)
>>
Schematic Wiring Diagrams
>>
Data Communication Schematics (Trax)
>>
Communication Enable (Trax)
Communication Enable (Trax)
WARNING:
This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

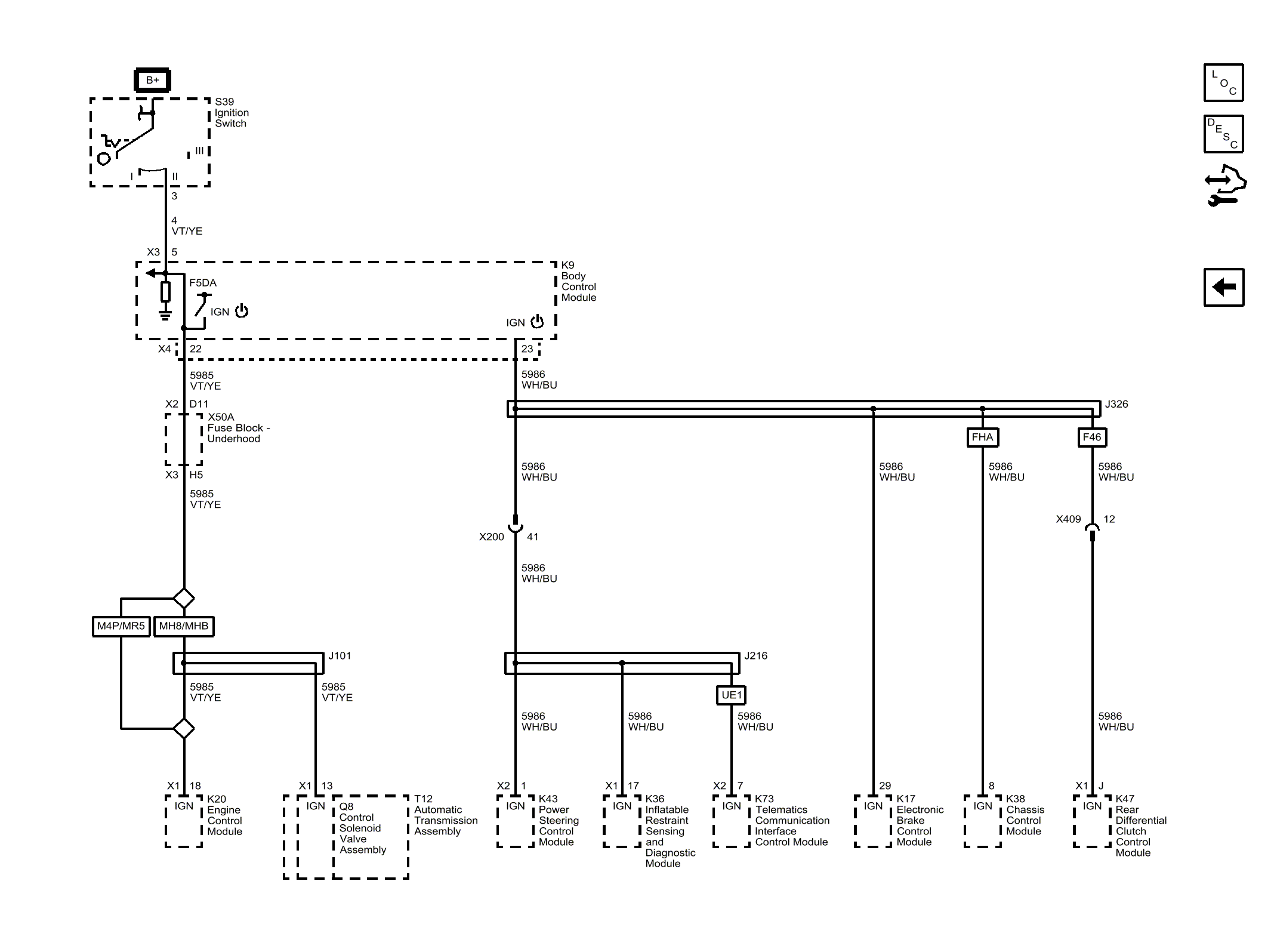

Fig 1: Communication Enable (Trax)
Courtesy of GENERAL MOTORS COMPANY
