Section 24 (Data Communication System)
>>
Schematic Wiring Diagrams
>>
Body Control System Schematics (Trax)
>>
Subsystem References (Trax, page 2 of 5)
Subsystem References (Trax, page 2 of 5)
WARNING:
This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

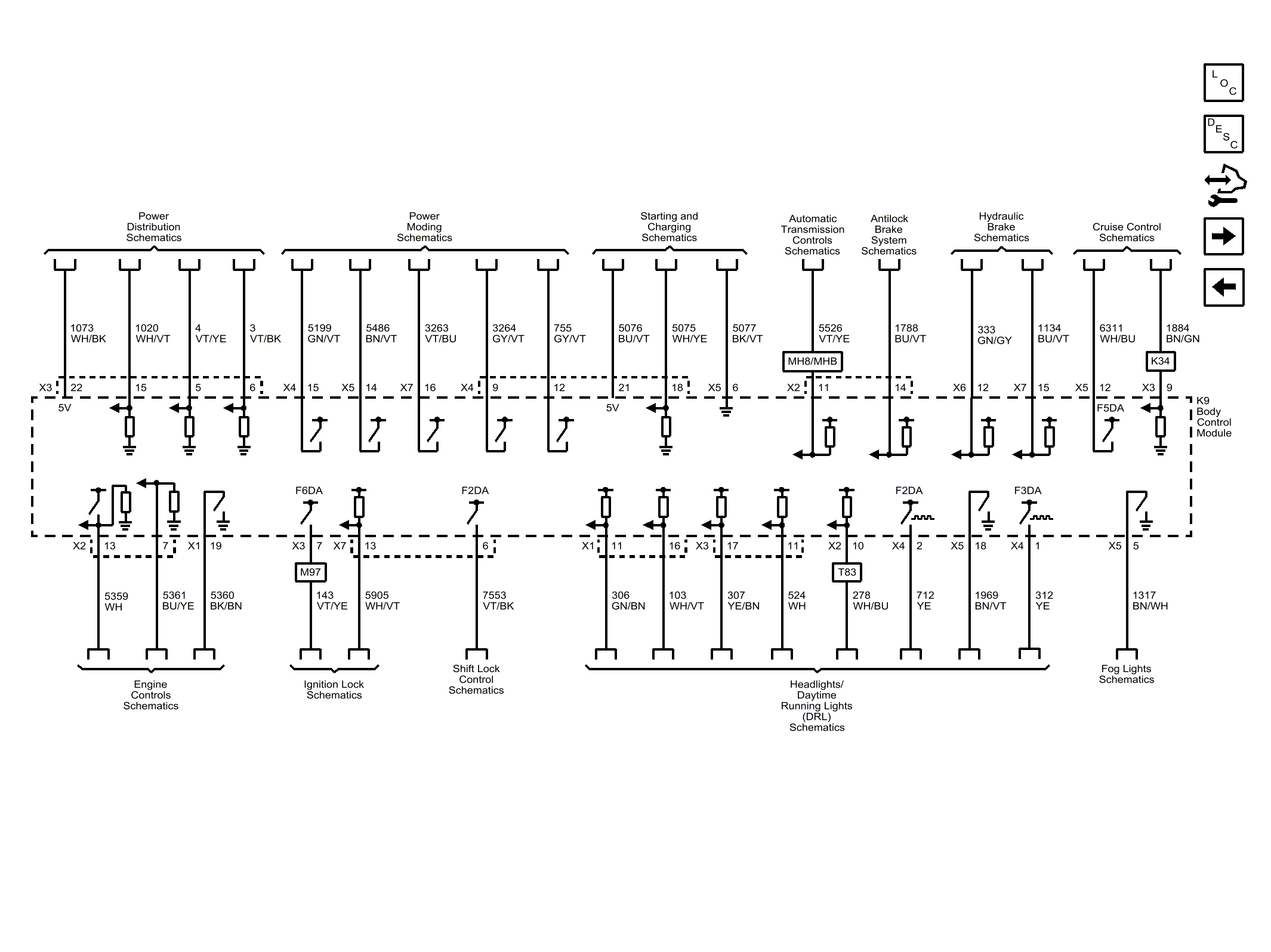

Fig 1: Subsystem References (Trax, page 2 of 5)
Courtesy of GENERAL MOTORS COMPANY
