Airbag Front End Discriminating Sensor Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

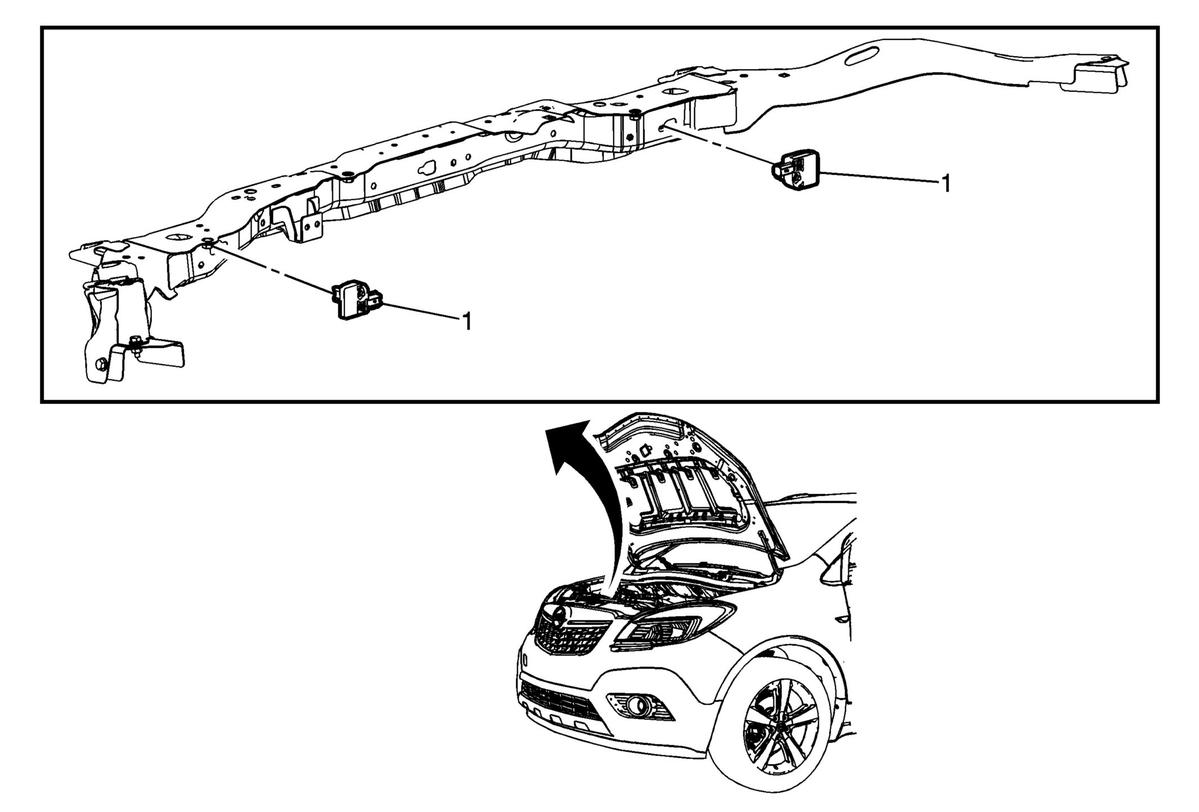

Fig 1: Front End Inflatable Restraint Discriminating Sensor Replacement (Encore)
GM3293164Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

WARNING:

Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary:

  • The seat cushion frame
  • The seat recliner, if equipped
  • The seat adjuster
  • The seat back frame

Failure to do so may cause future personal injury.

Preliminary Procedures

  1. Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
  2. Remove the front bumper fascia opening upper cover. Refer to Front Bumper Fascia Opening Upper Cover Replacement .
1 Inflatable Restraint Front End Discriminating Sensor Assembly (Qty: 2)
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Disconnect electrical connector.
  2. Loosen the bolts and slide the sensors out of the keyhole slots.
  3. The bolts are integral to the sensor assembly and DO NOT remove separately.

Tighten
7.5 N.m (66 lb in)
