Power, Ground, Data Communications, and Subsystem References (Trax, page 1 of 5)

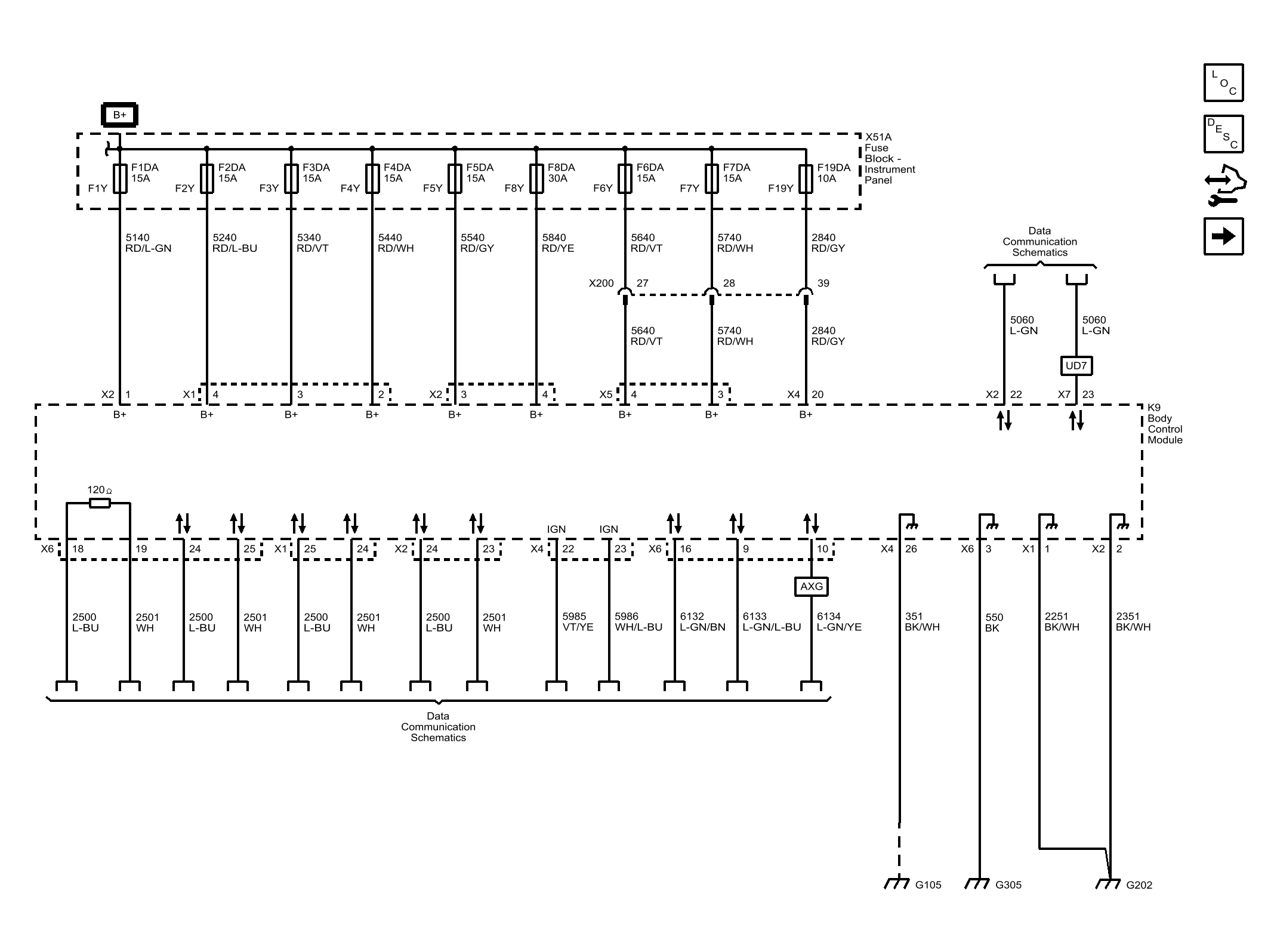

Fig 1: Power, Ground, Data Communications, and Subsystem References (Trax, page 1 of 5)
GM3989423Courtesy of GENERAL MOTORS COMPANY
