Removal Procedure

  1. Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without KL9) Battery Negative Cable Disconnection and Connection (with KL9) .

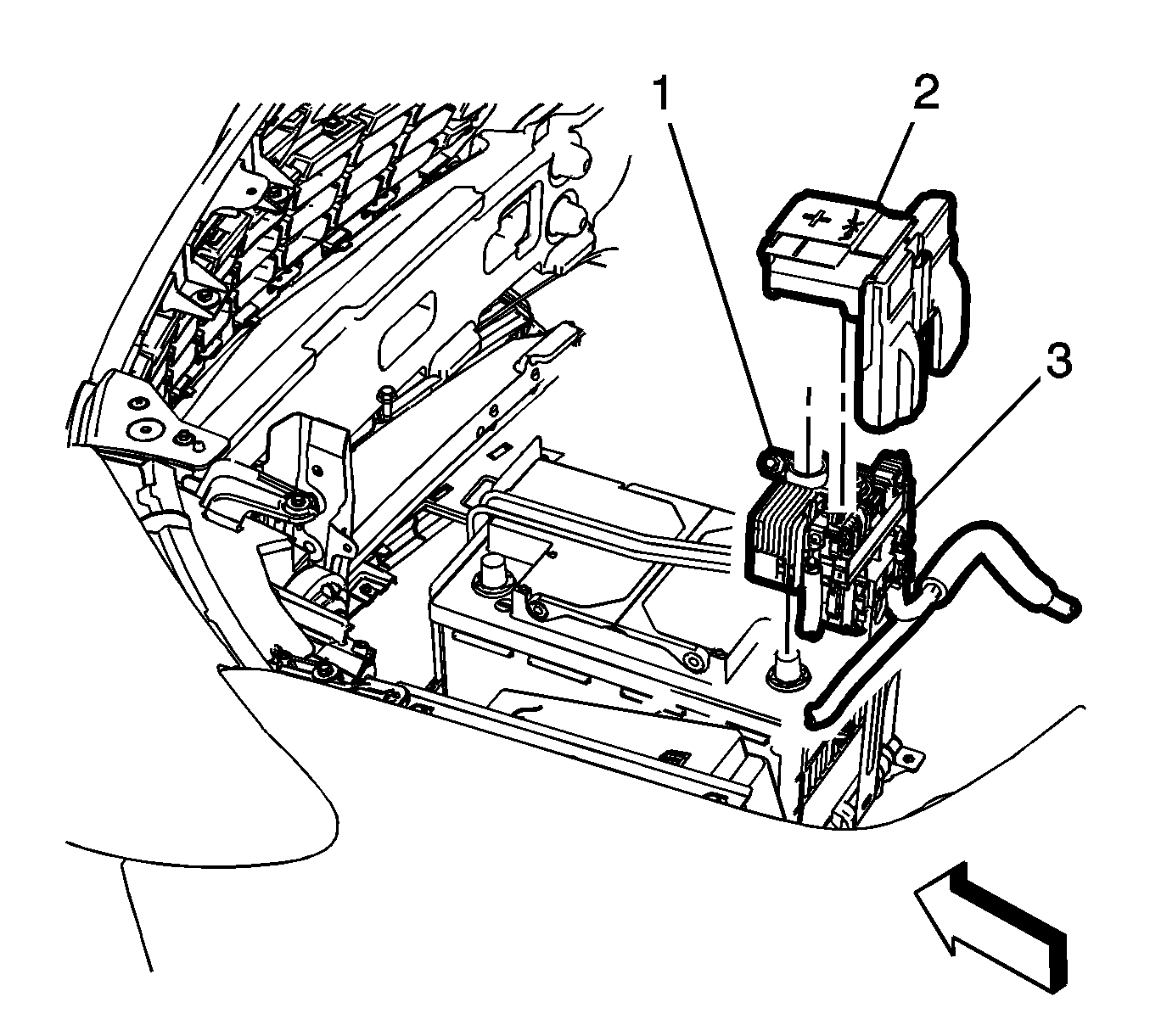

    2. Fig 1: Battery Fuse Block Cover
    GM2775999Courtesy of GENERAL MOTORS COMPANY
  2. Remove the battery fuse block cover (2) and loosen the battery positive post clamp (1).
  3. Remove the battery fuse block (3) and set aside.

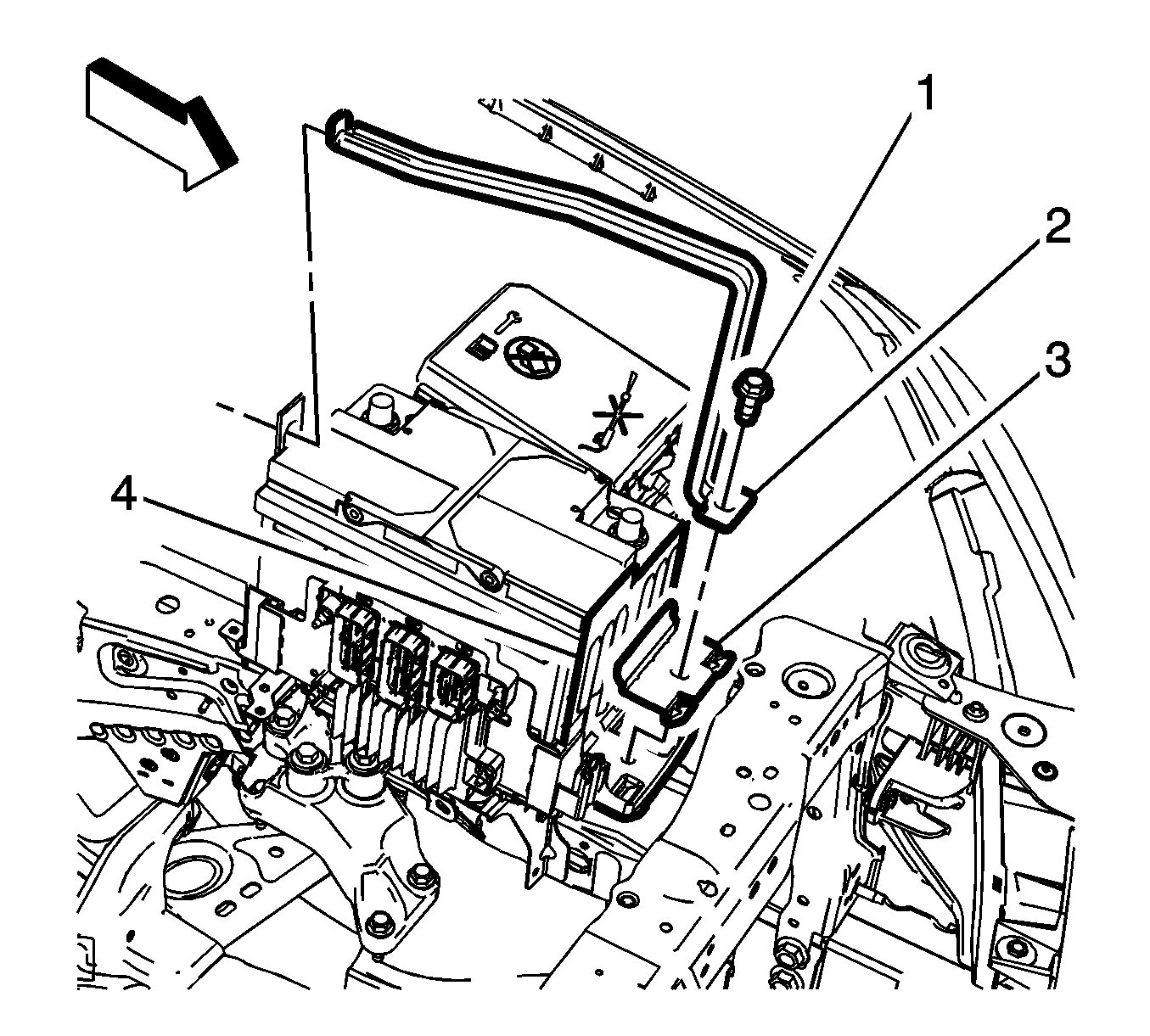

    4. Fig 2: Battery Hold Down Fastener And Battery Retainer Strap
    GM2776004Courtesy of GENERAL MOTORS COMPANY
  4. Remove the battery hold down fastener (1) and remove the battery retainer strap (2).

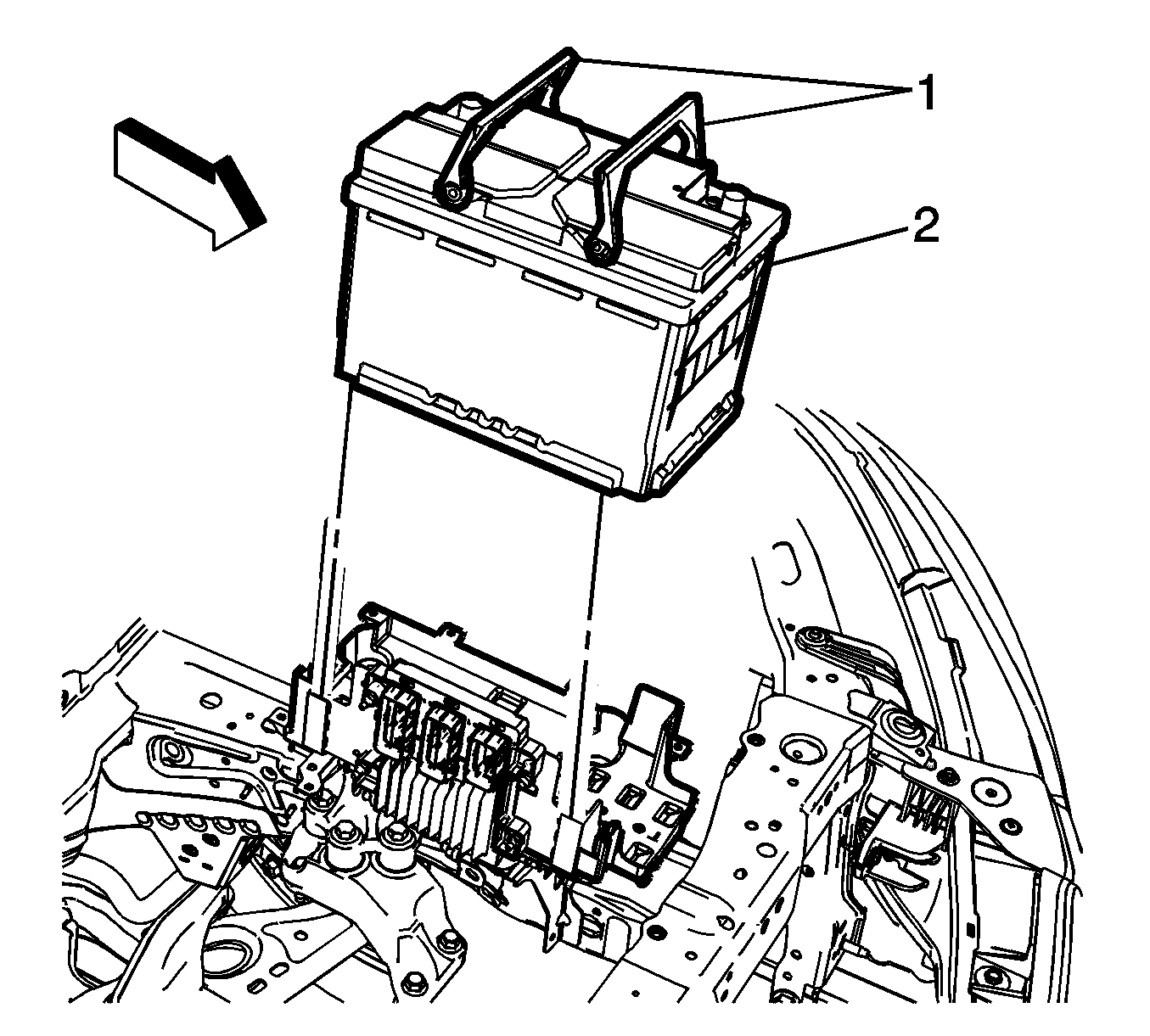

    5. Fig 3: Battery
    GM2776007Courtesy of GENERAL MOTORS COMPANY
  5. Remove the battery (2).
