Installation Procedure

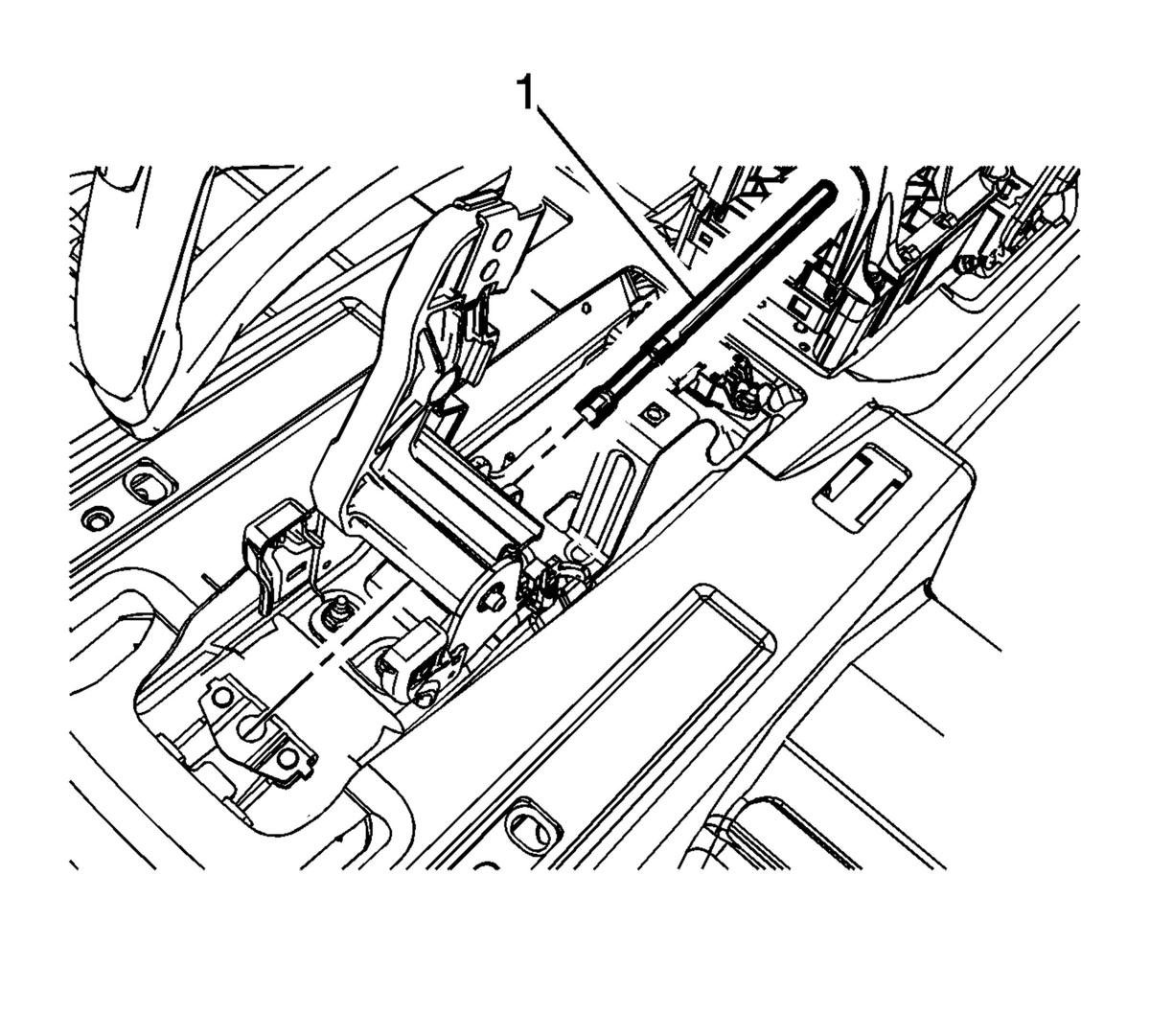

    Fig 1: Front Parking Brake Cable
    GM2787063Courtesy of GENERAL MOTORS COMPANY
  1. Install the front parking brake cable (1) to the parking brake lever.
  2. Connect the front parking brake cable to the rear parking brake cable equalizer.
  3. Visually inspect that the front parking brake cable is securely installed to the rear parking brake cable equalizer.

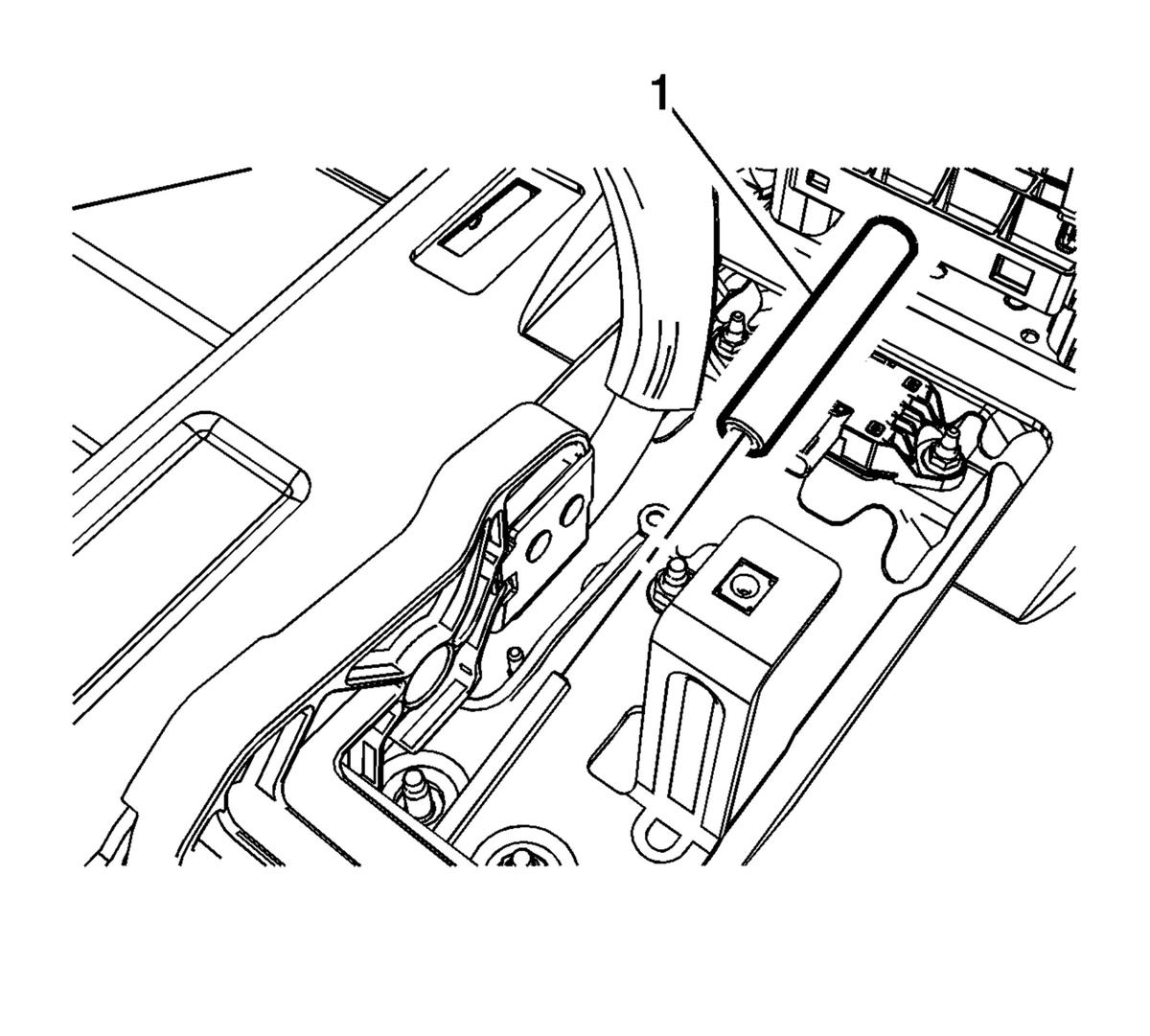

    4. Fig 2: Front Cable Tube Spacer
    GM2787061Courtesy of GENERAL MOTORS COMPANY
  4. Install the parking brake front cable tube spacer washer (1).

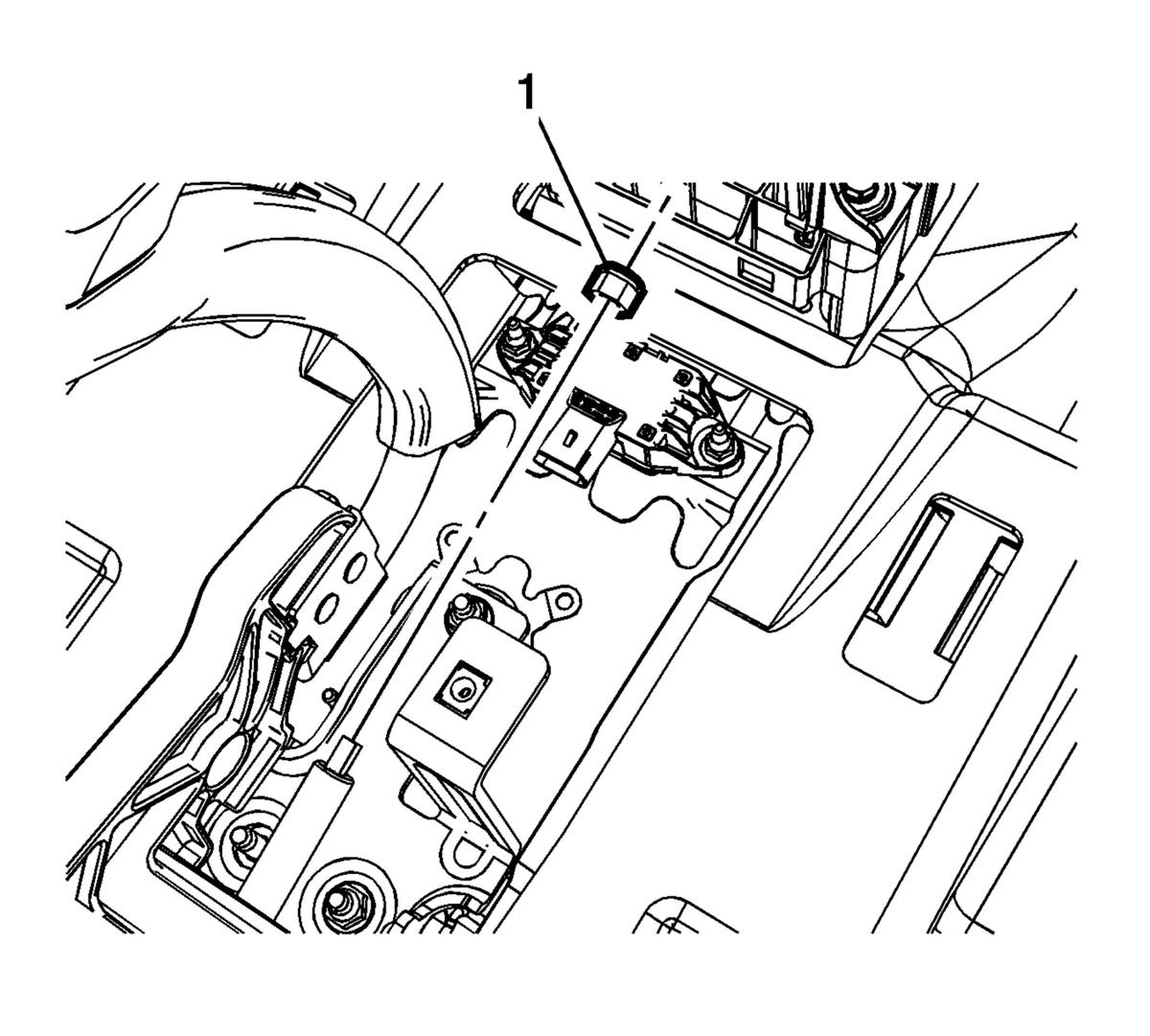

    5. Fig 3: Parking Brake Front Cable Adjuster Nut
    GM2787059Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  5. Loosely install the adjusting nut (1) to front cable threaded rod.
  6. Adjust the parking brake cable tension. Refer to Parking Brake Adjustment (Disc Brake) Parking Brake Adjustment (Drum Brake) .
  7. Install the front floor console. Refer to Front Floor Console Replacement (Encore)Front Floor Console Replacement Trax) .
