Memory Seats Description and Operation: Notes

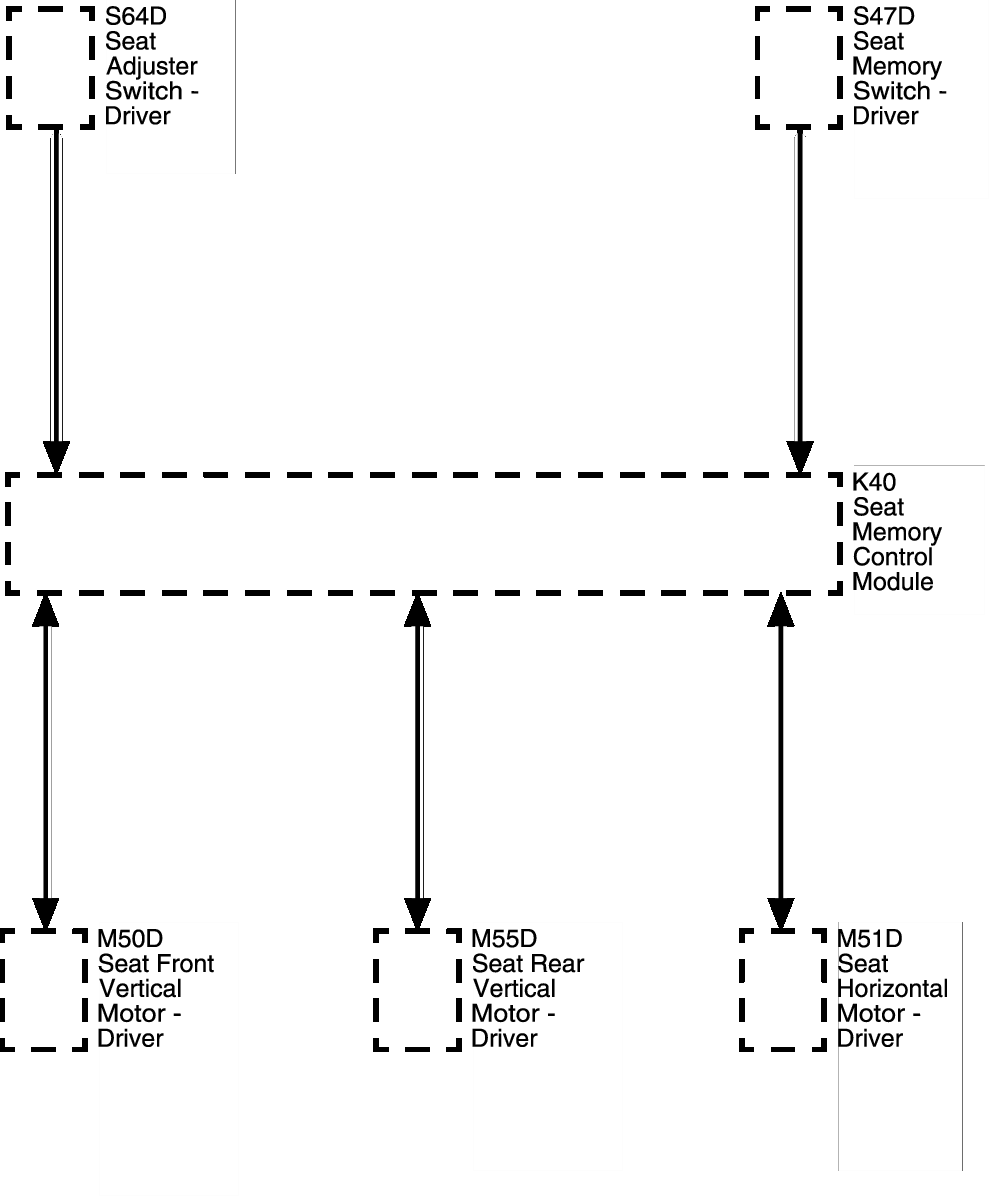

Fig 1: Memory Seat Block Diagram

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
S64D	S64D Seat Adjuster Switch - Driver
S47D	S47D Seat Memory Switch - Driver
K40	K40 Seat Memory Control Module
M50D	M50D Seat Front Vertical Motor - Driver
M55D	M55D Seat Rear Vertical Motor - Driver
M51D	M51D Seat Horizontal Motor - Driver
