Calibrate Control Module
To calibrate control module, perform the following procedure:
- Install a scan tool.
- Ignition ON.
- Select Rear Differential Clutch Service Calibration Setup in the Rear Differential Clutch Control Module Configuration/Reset Function List.
- Follow the scan tool directions to complete the calibration procedure.
NOTE:

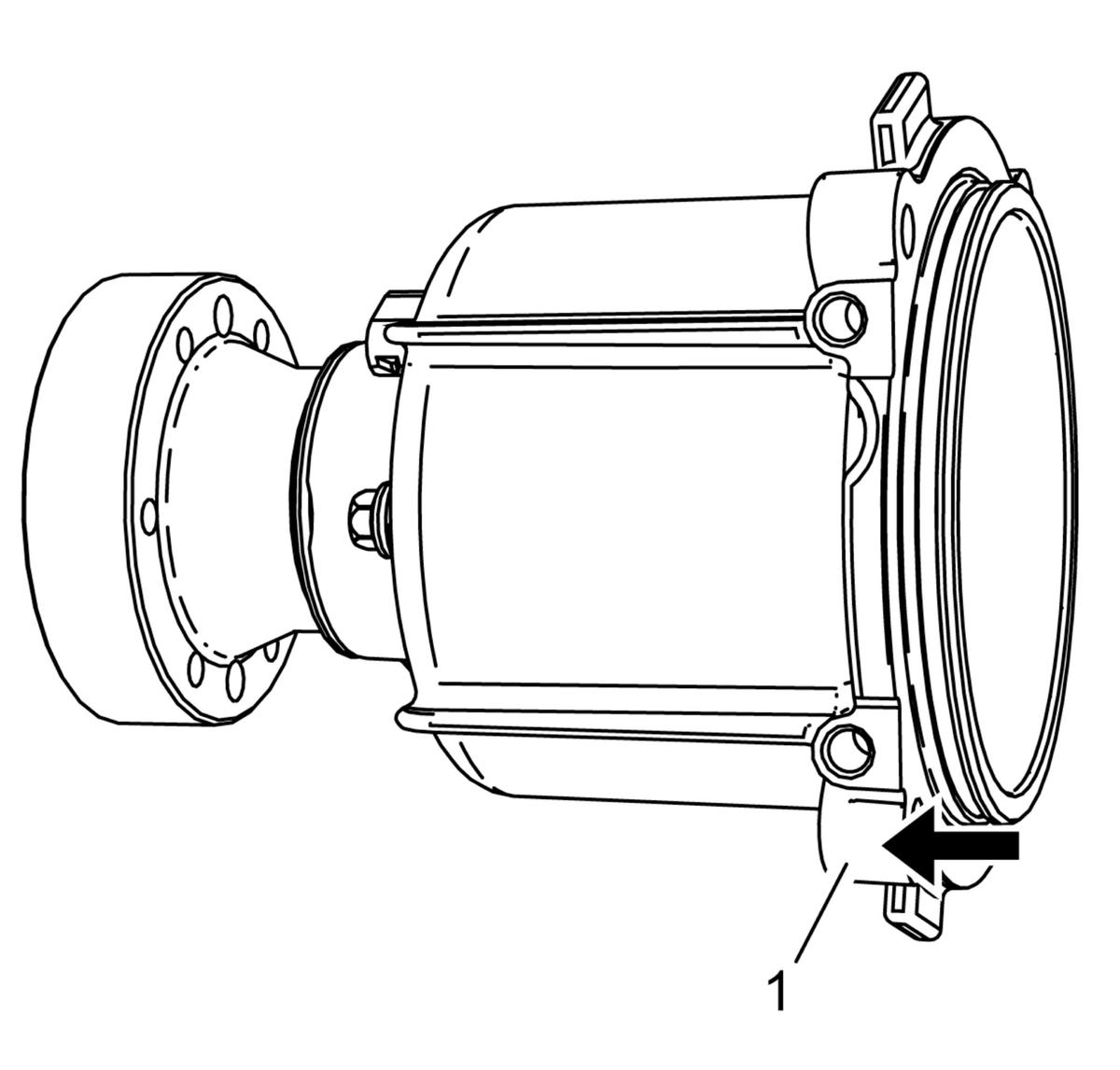

The clutch service calibration will be a single numeric digit. It will be found etched (1) on clutch pack housing. The top of the numeric digit is towards the prop-shaft flange.
