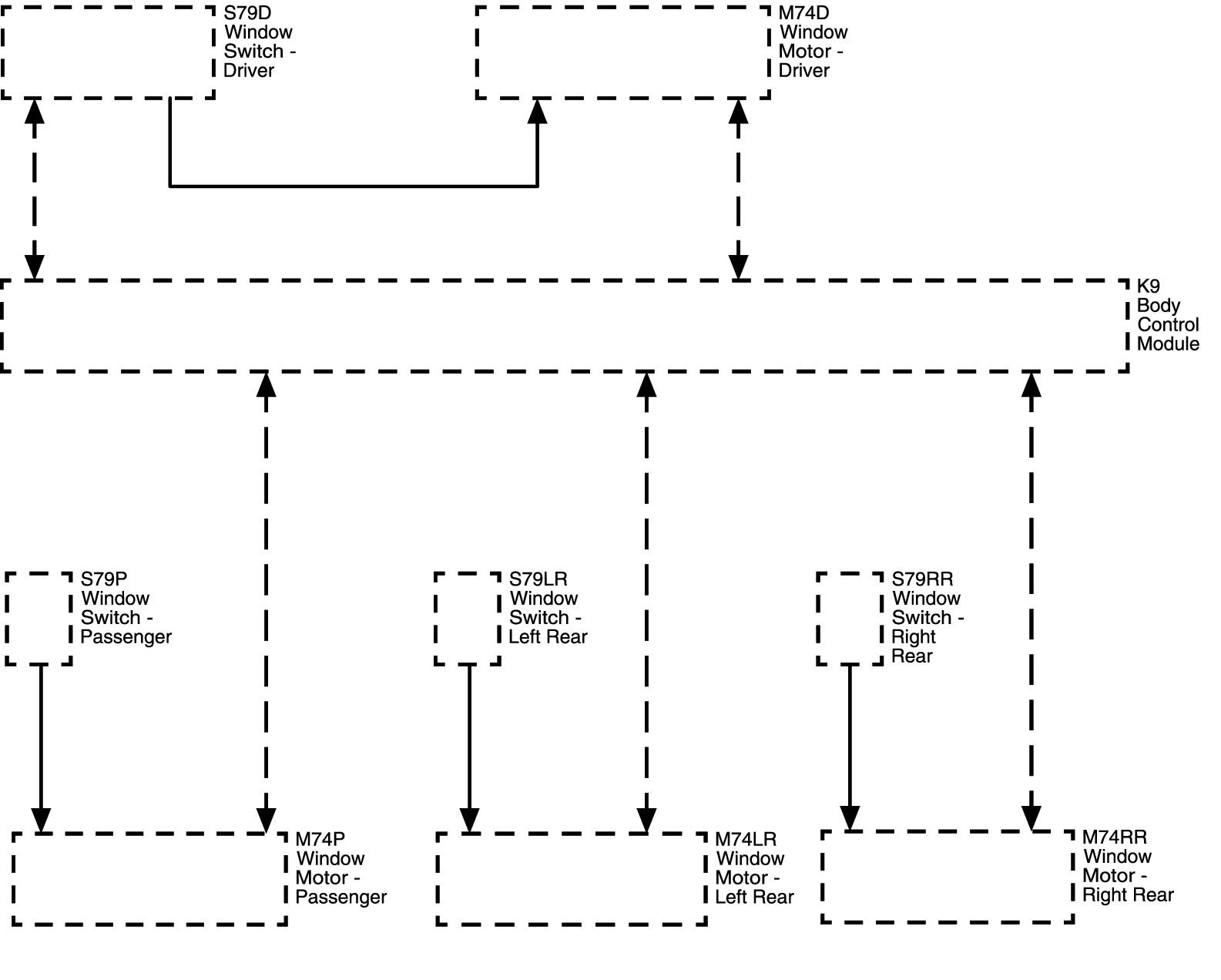

Power Window System
This vehicle can be configured as follows:
- All doors with express up and express down window motors
- Driver and passenger doors with express up and express down power window motors with left rear and right rear express down only window motors
- Driver with express up and express down power window motor with passenger, left rear and right rear express down only power window motors
- Driver with express up and express down power window motor and passenger, left rear and right rear power window motors without any express functions
- All doors window motors without any express functions
- Driver and passenger doors with power window motors without any express functions with rear door manual crank windows
| Callout | Component Name |
|---|---|
| S79D | S79D Window Switch - Driver |
| M74D | M74D Window Motor - Driver |
| K9 | K9 Body Control Module |
| S79RR | S79RR Window Switch - Right Rear |
| S79LR | S79LR Window Switch - Left Rear |
| S79P | S79P Window Switch - Passenger |
| M74P | M74P Window Motor - Passenger |
| M74LR | M74LR Window Motor - Left Rear |
| M74RR | M74RR Window Motor - Right Rear |
