Removal Procedure

  1. Remove the plenum water deflector. Refer to Plenum Water Deflector Replacement - Center .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  4. Fig 1: Brake Hose At Strut Assembly
    GM2743388Courtesy of GENERAL MOTORS COMPANY
  5. Separate the brake hose (1) from the strut assembly.
  6. Fig 2: Brake Caliper Bracket
    GM2743389Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Brake Caliper Caution .

  7. Remove and DISCARD the 2 brake caliper bracket bolts (1), and remove the brake caliper with bracket (2) without disconnecting the flexible brake hose. Secure the brake caliper assembly with a heavy mechanics wire.
  8. Fig 3: Brake Rotor And Brake Rotor Retaining Screw
    GM2027375Courtesy of GENERAL MOTORS COMPANY
  9. Remove the front brake rotor retaining screw (2), then remove the brake rotor (1) from the wheel hub.
  10. Fig 4: Front Wheel Speed Sensor
    GM2743391Courtesy of GENERAL MOTORS COMPANY
  11. Remove the front wheel speed sensor fastener (1).
  12. Remove the front wheel speed sensor (2) from the steering knuckle.
  13. Unclip the front wheel speed sensor wiring harness from the strut and lower control arm.
  14. Fig 5: Wheel Drive Shaft Holding Wrench & Extension
    GM2027952Courtesy of GENERAL MOTORS COMPANY
  15. Install the CH-49376  holding wrench with the EN-956-1  extension (2) to the hub and fix it with 3 wheel nuts.
  16. Fig 6: Wheel Drive Shaft And Nut
    GM2027914Courtesy of GENERAL MOTORS COMPANY
  17. Remove and DISCARD the wheel drive shaft nut (2) from the wheel drive shaft (1).
  18. Fig 7: Ront Stabilizer Shaft Link
    GM2743393Courtesy of GENERAL MOTORS COMPANY
  19. Remove the front stabilizer shaft link upper nut (1), and disconnect the link (2) from the front strut.
  20. Fig 8: Tie Rod End At Steering Knuckle
    GM2743392Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Ball Stud Removal Caution .

  21. Remove and DISCARD the outer tie rod end nut (1).
  22. Use the CH-161-B  puller to separate and remove the tie rod end (2) from the steering knuckle.
  23. Fig 9: Front Lower Control Arm Outer Nut And Bolt
    GM2743390Courtesy of GENERAL MOTORS COMPANY
  24. Remove and DISCARD the front lower control arm outer nut (1), then remove and DISCARD the front lower control arm outer bolt (2).

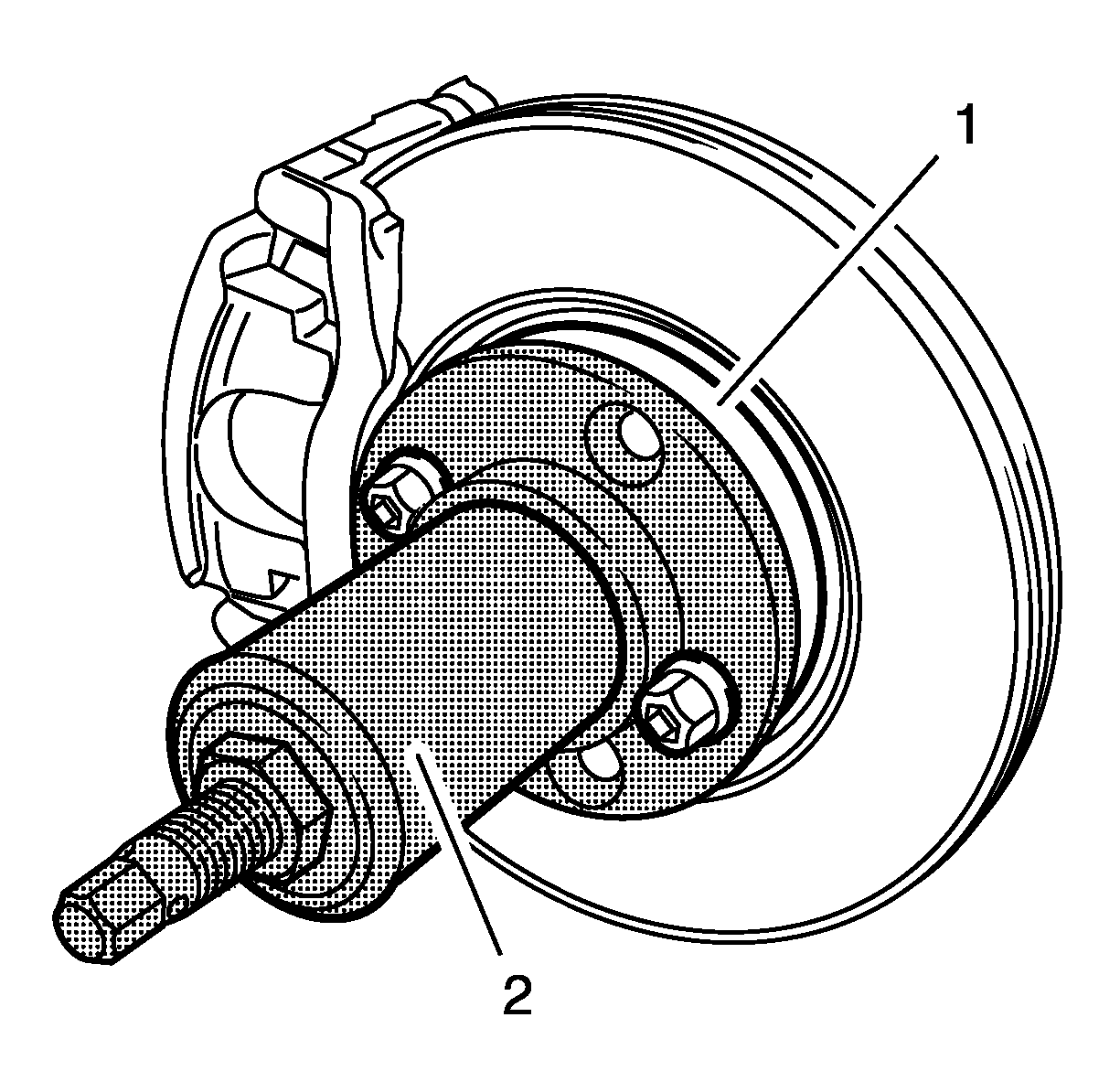

  25. Fig 10: Special Tool And Wheel Bearing/Hub Assembly
    GM2027951Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    To prevent personal injury and/or component damage, do not allow the weight of the vehicle to load the front wheels, or attempt to operate the vehicle, when the wheel drive shaft (s) or wheel drive shaft nut (s) are removed. To do so may cause the inner bearing race to separate, resulting in damage to brake and suspension components and loss of vehicle control.

    CAUTION:

    Wheel drive shaft boots, seals and clamps should be protected from sharp objects any time service is performed on or near the wheel drive shaft (s). Damage to the boot (s), the seal (s) or the clamp (s) may cause lubricant to leak from the joint and lead to increased noise and possible failure of the wheel drive shaft.

  26. Using the CH-49400  remover (2), separate the wheel drive shaft from the wheel bearing/hub assembly (1).
  27. Fig 11: View Of Upper Strut Mounting Plate And Nut
    GM2027761Courtesy of GENERAL MOTORS COMPANY
  28. Remove the strut mount cap (2).
  29. While supporting the strut assembly, use the CH-49375  wrench to remove the upper strut mount nut (1).
  30. Remove the strut mounting plate (3).
  31. Fig 12: Strut Assembly
    GM2743394Courtesy of GENERAL MOTORS COMPANY
  32. Remove the strut assembly (1) from the vehicle.
  33. Fig 13: Front Shock Absorber Yoke
    GM2781539Courtesy of GENERAL MOTORS COMPANY
  34. Disassemble the strut assembly. Clamp the strut assembly into a vice with jaw protective covers. Clamp the assembly, so that the jaws are positioned on the shock absorber tube (1).
  35. Remove and DISCARD the front shock absorber yoke bolt (3) and nut (1).
  36. Remove the yoke and steering knuckle assembly from the shock absorber (2).
